A transfer cart is a rail-guided or trackless wheeled flat cart used to transfer heavy materials, molds or machinery between production stages. It operates via an electric, hydraulic or manual power system, with automatic movement, precise positioning and customizable control (remote/wireless), and a load capacity of 1 to 500 t. It is widely used for heavy-duty transportation of materials, goods or equipment in industrial facilities such as manufacturing plants, warehouses or assembly lines.
Types of Transfer Carts
As a leading manufacturer of transfer carts in China, Remarkable specializes in providing customized and intelligent material handling solutions. Our company integrates advanced automation technologies (e.g. IoT sensors, programmable logic controllers) into its carts to adapt to different industrial scenarios.Remarkable’s expertise lies in customizing carts according to specific load capacities, environmental conditions (explosion-proof, high temperature), and operational processes to ensure seamless integration into the customer’s production system. Contact us today for a customized transfer cart solution.

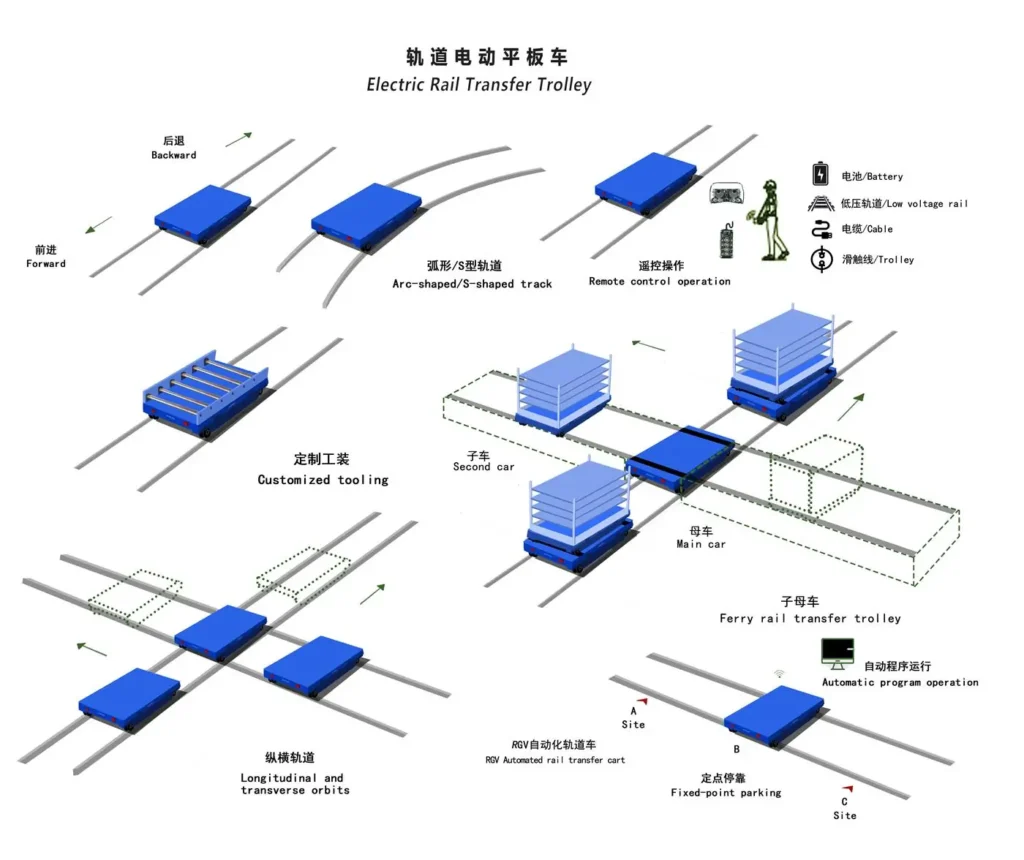

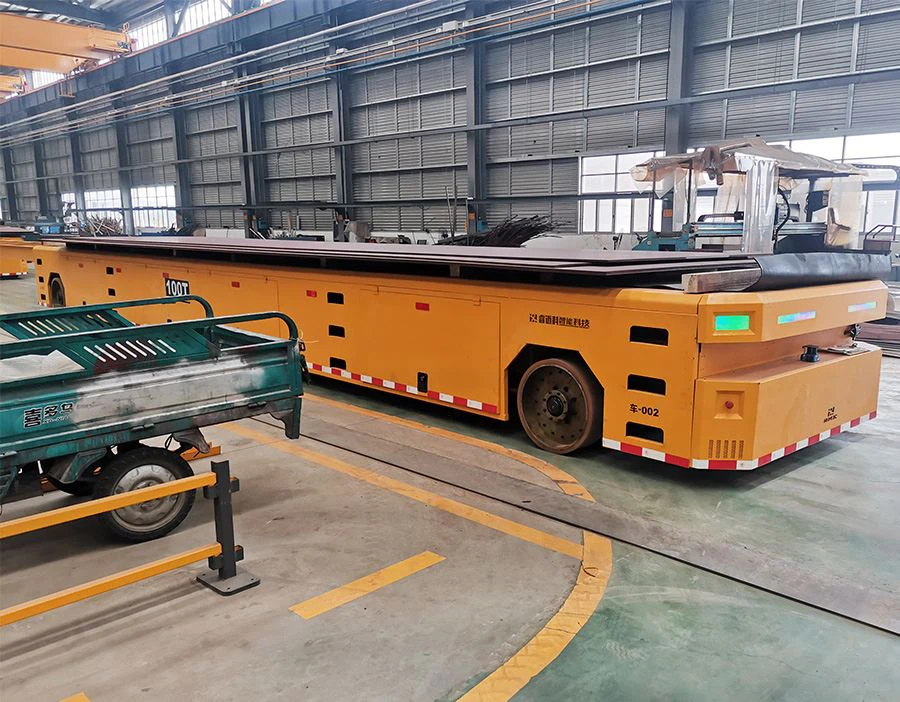

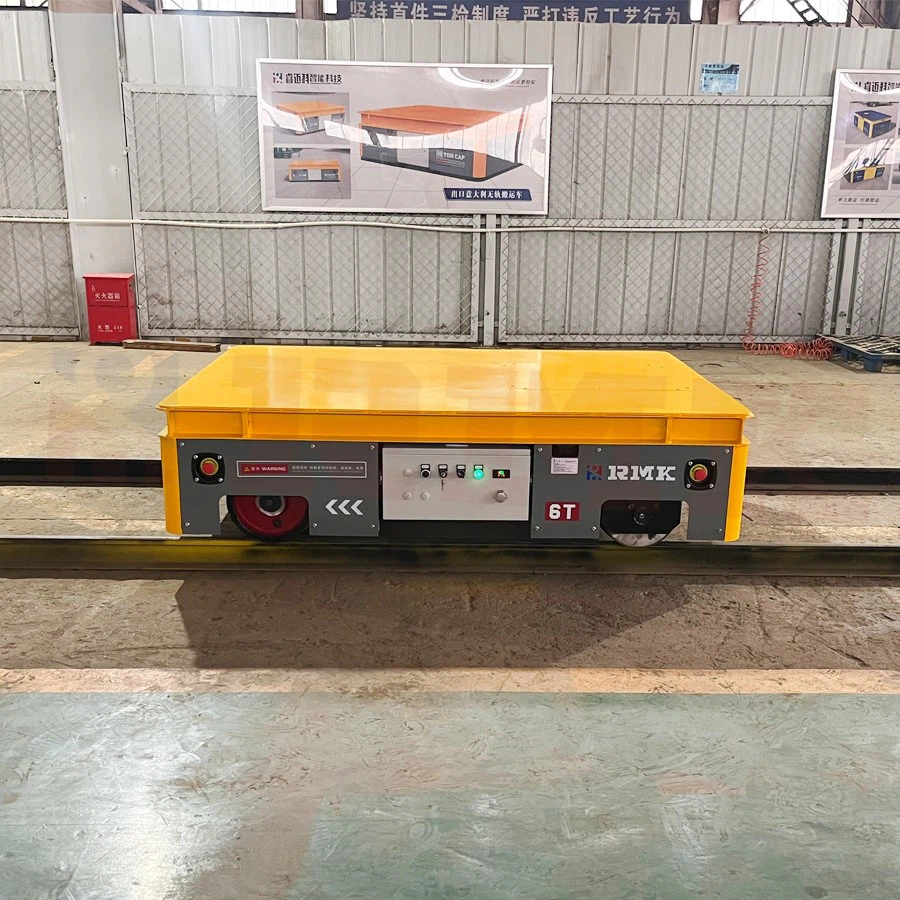

Rail Transfer Carts Specifications
| Capacity | 2 | 5 | 10 | 16 | 20 | 30 | 40 | 50 | |
| Table Size(mm) | Length | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 5000 | 5500 |
| Width | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | |
| Height | 450 | 450 | 500 | 500 | 550 | 600 | 650 | 650 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3800 | 4200 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ350 | Φ400 | Φ500 | Φ500 | |
| Wheel Quantity | 4 | ||||||||
| Ground Clearance(mm) | 50 | ||||||||
| Running Speed(m/min) | 0-25 | ||||||||
| Motor Power(kw) | 1 | 1.2 | 1.6 | 2 | 2.2 | 3.5 | 4 | 5 | |
| Transformer Power(KVA) | 3 | 5 | 5 | 6.8 | 6.8 | 10 | 10 | 10 | |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 110.4 | 142.8 | 174 | |
| Reference Weight(t) | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.8 | 7.6 | 8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P43 | P43 | |

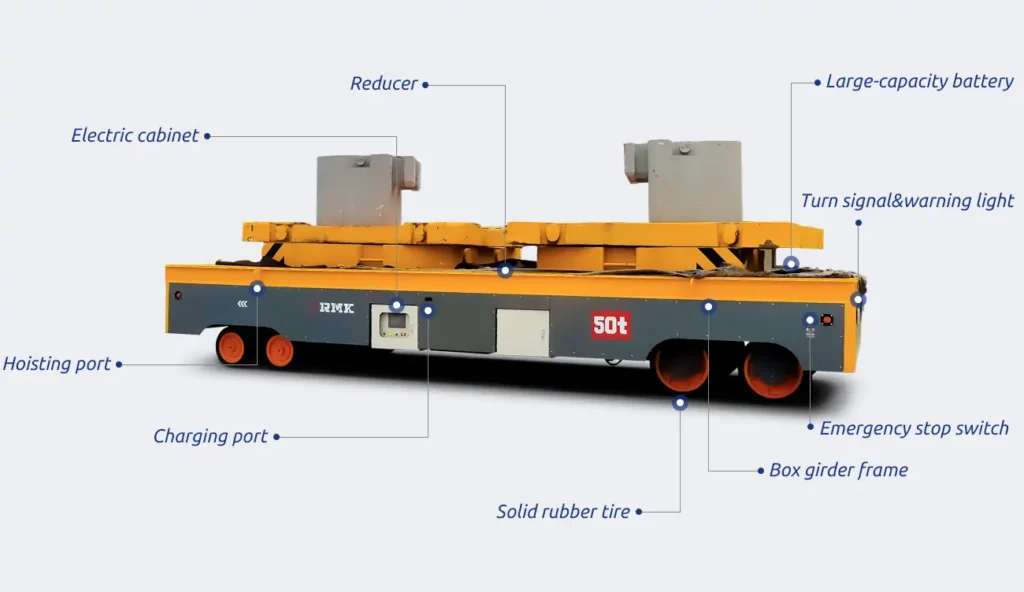

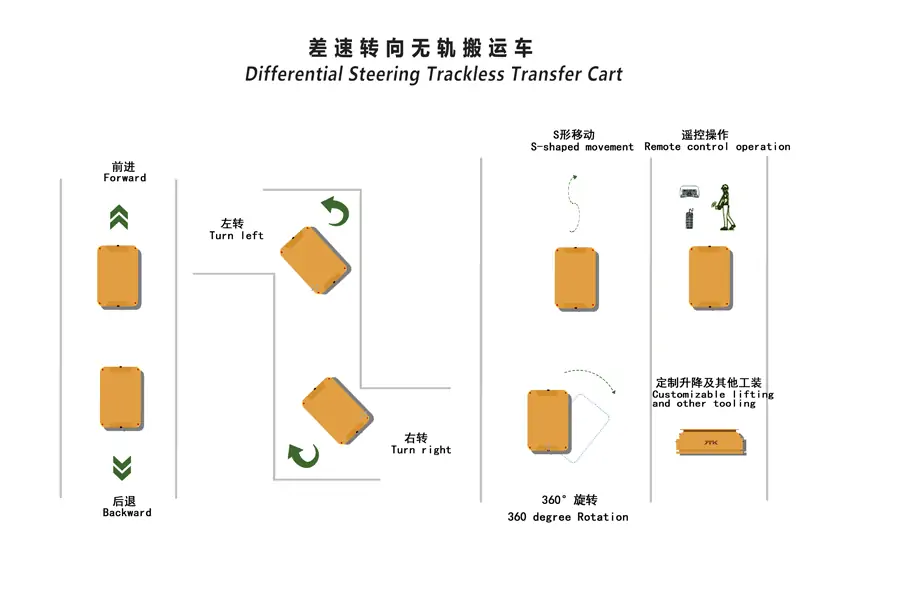

Trackless Transfer Carts Specifications
| Capacity | 2 | 5 | 10 | 15 | 25 | 30 | 50 | 100 | |
| Table Size(mm) | Length | 2000 | 2200 | 2300 | 2400 | 3500 | 3500 | 5500 | 6600 |
| Width | 1500 | 2000 | 2000 | 2100 | 2200 | 2200 | 2600 | 3000 | |
| Height | 450 | 500 | 550 | 600 | 700 | 700 | 800 | 1200 | |
| Wheel Base(mm) | 1080 | 1650 | 1650 | 1600 | 1650 | 1650 | 2000 | 2000 | |
| Rail Inner Gauge(mm) | 1380 | 1680 | 1700 | 1830 | 2700 | 2700 | 2850 | 4000 | |
| Wheel Diameter(mm) | Φ250 | Φ300 | Φ350 | Φ400 | Φ450 | Φ450 | Φ600 | Φ600 | |
| Wheel Quantity | 4 | 8 | |||||||
| Ground Clearance(mm) | 50 | 75 | |||||||
| Running Speed(m/min) | 0-20/25 | ||||||||
| Motor Power(kw) | 2*1.2 | 2*1.5 | 2*2.2 | 2*3.5 | 2*5.5 | 2*5.5 | 2*7.5 | 40 | |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 94.7 | 110.4 | 174 | 190 | |
| Reference Weight(t) | 2.3 | 3.6 | 4.2 | 5.5 | 6.5 | 6.8 | 8 | 26.8 | |
Features
Heavy Load Capacity
It can carry 1~500 ton heavy loads, which is suitable for heavy industrial transportation, such as steel, machinery manufacturing and other fields.
Flexible drive mode

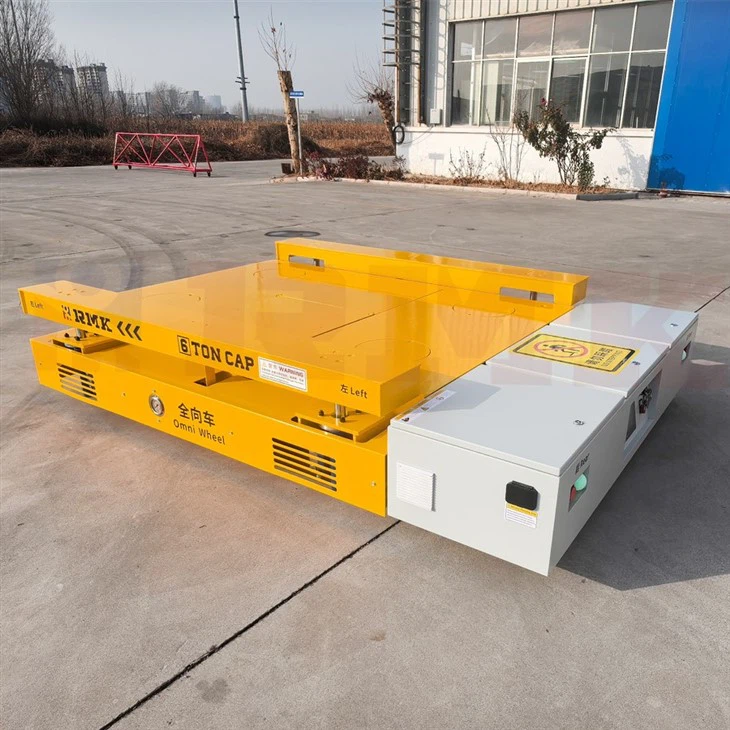

Supports electric, hydraulic, diesel or manual drive, adapting to different working conditions (e.g. trackless, tracked, explosion-proof environment).
Precise Positioning Control
Equipped with encoder, laser navigation or RFID technology, it realizes millimeter-level positioning to meet the high-precision requirements of automated production lines.
Customized design
Customized size, track layout, power supply (battery/sliding line) and protection level are available according to the scene requirements.
Intelligent Automation Integration
Compatible with PLC, remote control or AGV dispatching system, and supports linkage with industrial software such as MES/WMS to realize intelligent logistics.
Durable and safe structure
Adopts heavy-duty steel structure, anti-collision sensors and emergency braking system for long-term stable operation.
Applications
Transfer Cart is an efficient and flexible industrial handling equipment widely used in areas requiring heavy, frequent or automated material transportation. Its modular design and customizable features allow it to be adapted to the specific needs of different industries, including manufacturing, metallurgy, aerospace, automotive, chemical, warehousing and logistics. Whether it is an indoor workshop, an outdoor site, or a harsh environment such as high temperature or explosion-proof, the Transfer Cart provides a reliable transportation solution.
For specific selection options, please contact our engineering team!
Trusted Transfer Cart Manufacturer for Heavy-Duty Solutions
As a trusted and experienced manufacturer of high-performance transfer carts, we specialize in delivering custom-engineered material handling solutions for transporting heavy, oversized, or precision-sensitive loads across a wide range of industries. With over a decade of expertise in advanced omnidirectional steering and intelligent control systems, we design and build robust transfer carts that enhance workflow efficiency, maximize space utilization, and ensure safe, smooth operations even in the most confined and complex environments.
Our Certificates
Why Choose Us?
Overseas Cases Show
Related Articles
Customized Intelligent Material Handling Solutions
To ensure that a customized transfer cart fits your needs perfectly, please provide the following details:
- Load Capacity: _____ tons (1~500 ton)
- Table Size: _____ × _____ mm/m (e.g., 1500×3000)
- Power Options:
- ☐ Lead-acid ☐ Lithium-ion ☐ Other: _____
- ☐ Cable: _____V/_____A
- ☐ Standard 380V/50Hz/3-phase
- Cargo Details:
- Type: _____ (e.g., steel coils, machinery)
- Special Needs: _____ (e.g., anti-slip, corrosion-proof)
- Optional Features:
- ☐ Emergency stop ☐ Anti-collision sensors
- ☐ Rail guides ☐ Lifting mechanism ☐ Remote control
