• Model: KPX
  • Capacity: 1-300T
  • Material: Q345
  • Type: Rail type or trackless
  • Power Mode: Battery or motorised
  • Operation Type: Pendant/Remote Control
  • Advantage: 360 Degree Turning Around
sEND TO EMAIL

Working Principle

The Steel Coil Transfer Cart operates on the principle of an electrically powered system that drives the wheels to achieve smooth forward motion or steering. The power source can come from a battery, a slip wire or a cable reel. The motor transmits power to the wheels through a gearbox to drive the cart along a predetermined route. The control mode usually adopts handheld controller or wireless remote control, and the operator can precisely control the vehicle start and stop, acceleration and deceleration, steering and other actions. In order to ensure the transportation safety, the vehicle body is equipped with steel coil limit frame or V-shaped bracket to prevent the material from rolling or displacement in the process of moving.

Videos Show

Application

The Steel Coil Transfer Cart is not only suitable for the transfer of steel coils in the steel industry, but can also flexibly cope with a wide range of heavy-duty material handling needs, serving a wide range of industrial sectors. Typical applications include:

Steel and metallurgical industry: transferring heavy materials such as coils, tubes, profiles, billets, intermediate ladles, ingots, etc., for efficient operation between rolling lines, heat treatment lines, raw material storage and finished product storage;

Paper mills: for the transportation of paper coils from the production line to the warehouse, or from the storage area to the converting shop;

Paint shops: for the safe transportation of workpieces to paint booths or curing ovens;

Shipbuilding: transfer of large hull structural parts, steel plates and welding modules, suitable for cross-shop logistics of large parts in shipyards;

Quarrying and mining: handling ores, billets and large components, adapting to harsh operating environments;

Warehousing and multi-workshop linkage: connecting different production processes or storage areas.

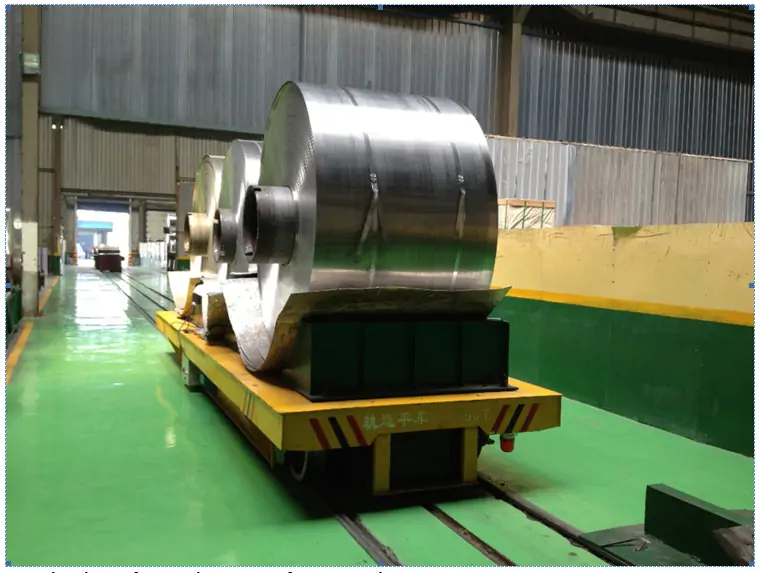

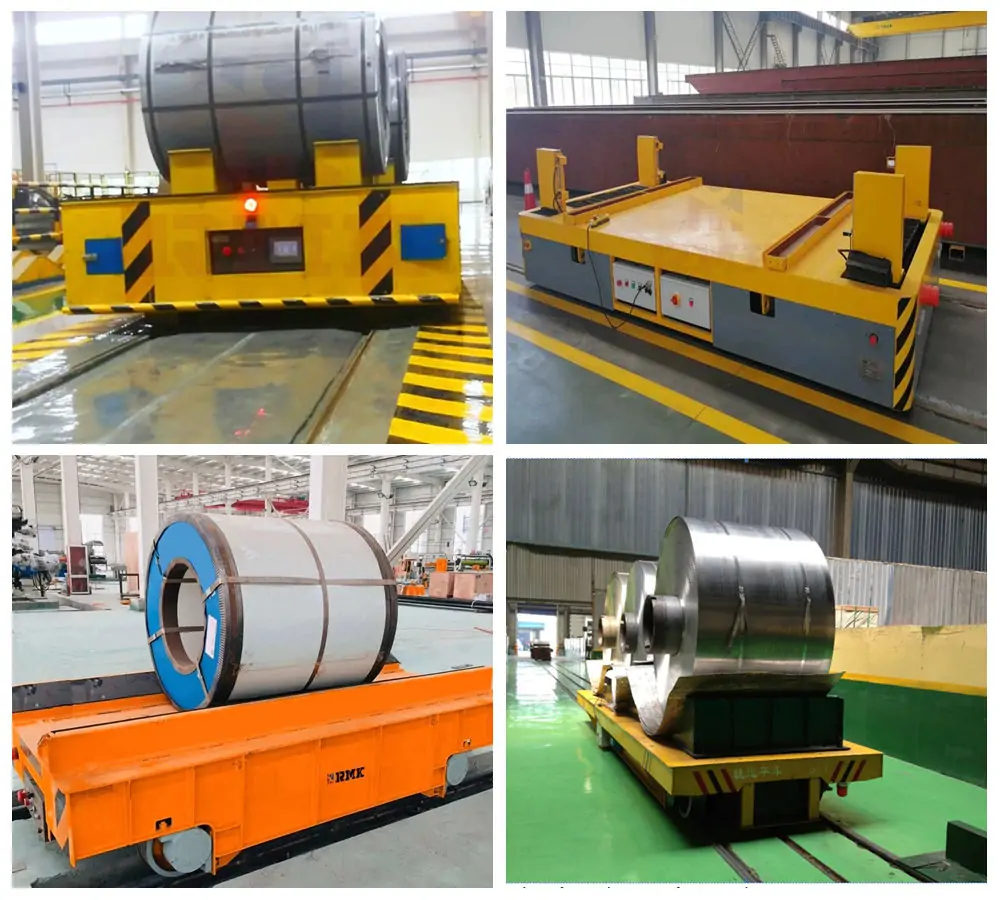

steel coil transfer cart

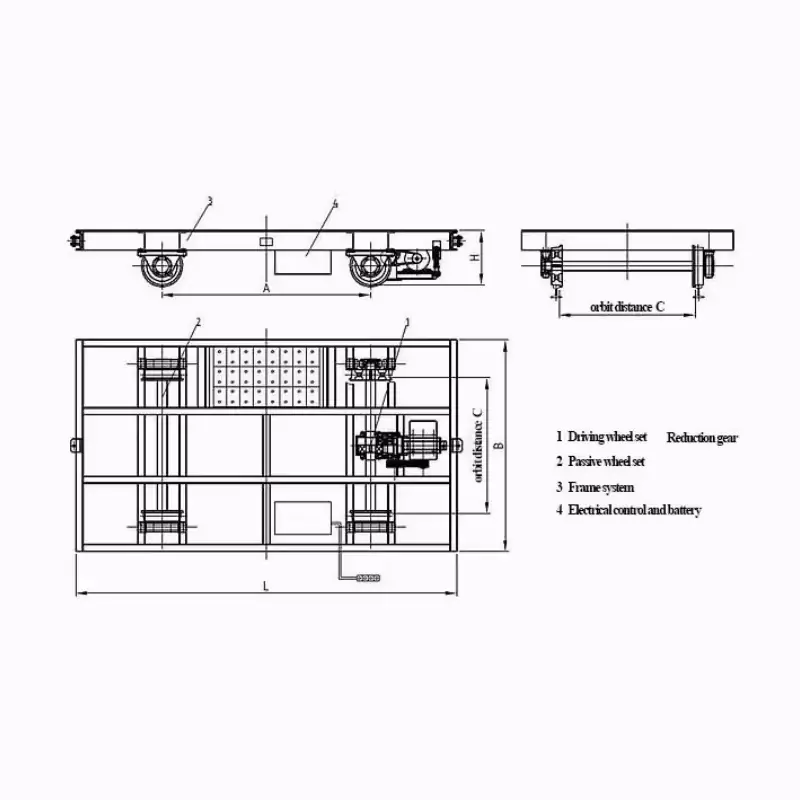

custom-steel-coil-transfer-cart

Customized Steel Coil Transfer Cart

  • Load Capacity: Usually 5~50 tons, larger load can be customized according to the demand.
  • Table Size: customized length, width and height according to the specification of steel coil.
  • Power Supply: Battery, cable reel, slide wire, low voltage rail, etc.
  • Running Speed: Usually 0-30m/min, variable frequency speed control.
  • Rail Type or Trackless: choose the running mode according to the site operating environment.
  • Turning Radius: Suitable for multi-direction operation in narrow field.
  • Coil Support Structure: such as V-frame, U-channel or adjustable support frame.
  • Control Mode: Handheld button, wired/wireless remote control, automatic navigation, etc.
  • Safety Protection Devices: such as emergency stop devices, warning lights, limit switches, anti-collision systems, etc.

If you need to get a customized quote or technical solution, please contact our engineer team, we will provide you with professional and efficient handling solutions.

Specifications

The Steel Coil Transfer Cart is highly adaptable and can be customized according to different load types, such as adding V-frames to fix coils, or installing rotating tables to achieve multi-angle transfer, to meet the diversified handling needs in complex operating environments.

ModleKPX-10 TonKPX-30 TonKPX-50 TonKPX-80 TonKPX-100 Ton
Table Size (m)3.6*2.0*0.54.5*2.2*0.65.5*2.5*0.656.0*2.6*0.86.5*2.8*0.9
PowerMaintenance Free Battery
Rail inner Gauge1435mm1435mm1435mm1800mm2000mm
Wheel Dia.350mm400mm500mm600mm600mm
Running Speed0-20m/min0-20m/min0-20m/min0-20m/min0-20m/min
Motor Power1.6kw3.5kw5kw8kw10kw
Capacity180Ah250Ah330Ah400Ah440Ah
Volatge48v48v48v72v72v
Max Wheel Load42.6Kn110.4Kn174Kn278.4Kn343.8Kn
Reference weight4.2t6.8t8t12.8t14.6t
Recommend RailP24P38P43P50P100

Features

Related Articles

Related Products

Customized Intelligent Material Handling Solutions

To ensure that a customized transfer cart fits your needs perfectly, please provide the following details:

  • Load Capacity: _____ tons (1~500 ton)
  • Table Size: _____ × _____ mm/m (e.g., 1500×3000)
  • Power Options:
  • ☐ Lead-acid ☐ Lithium-ion ☐ Other: _____
  • ☐ Cable: _____V/_____A
  • ☐ Standard 380V/50Hz/3-phase
  • Cargo Details:
  • Type: _____ (e.g., steel coils, machinery)
  • Special Needs: _____ (e.g., anti-slip, corrosion-proof)
  • Optional Features:
  • ☐ Emergency stop ☐ Anti-collision sensors
  • ☐ Rail guides ☐ Lifting mechanism ☐ Remote control
