This article presents a case study of a 20-ton steel plate transport project for a Croatian client. REMARKABLE customized a 20-ton battery rail transfer cart to the operational environment, successfully addressing the challenge of transporting heavy loads within the workshop.

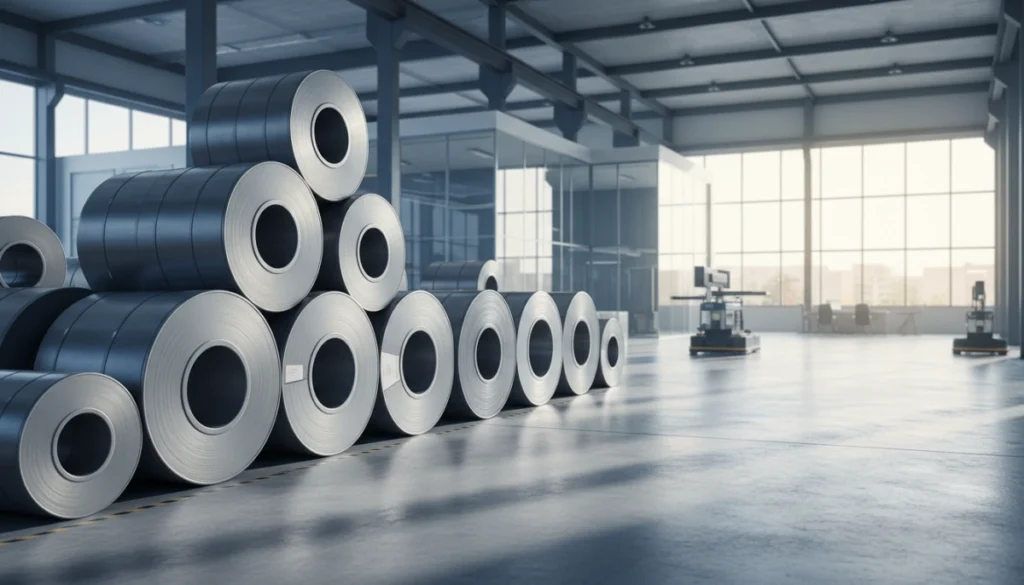

Project Background
The Croatian customer is a company engaged in steel processing and heavy industrial manufacturing. In daily production, they need to transport heavy materials such as steel plates, steel coils, and molds inside the workshop. As production capacity expanded, traditional forklifts and fixed transportation equipment could no longer meet on-site requirements in terms of efficiency, route adaptability, and safety.
The workshop had a complex rail layout, including S-shaped tracks, U-shaped tracks, and multiple curved sections. Conventional straight-track equipment could not maintain stable operation under these conditions. The customer wanted a transportation solution with strong load capacity, stable operation, and the ability to adapt to complex rail environments. They were looking for a reliable industrial rail transfer vehicle capable of handling these demanding working conditions.
The customer proposed the following requirements:
- Heavy Load Capacity: Transport large steel plates and industrial materials weighing up to 20 tons while leaving room for future capacity expansion.
- Adaptability to Curved Tracks: The equipment should operate stably on S-shaped tracks, U-shaped tracks, and curved tracks.
- Flexible Operation: Support both remote control and on-site operation for quick dispatching between workstations.
- Safe Transportation: Equipped with emergency braking, alarm systems, and safety protection devices.
- Low Maintenance: Durable structure with easy maintenance for later use.
Solution
To meet the customer’s heavy-duty transportation and complex rail operation requirements, the REMARKABLE engineering team conducted several rounds of discussions during the early stage, including transported material types, rail layout, operating frequency, and on-site operation methods. Based on the actual working conditions, a customized 20 ton battery rail transfer cart solution was developed.
Considering the customer’s S-shaped, U-shaped, and curved rail conditions and the high demand for operational stability, the engineering team carried out targeted optimization of the vehicle structure and running system. The equipment adopts a battery-powered mode and works with a variable-frequency drive system to achieve smooth starting, stopping, and speed adjustment while improving operational precision and ride stability during heavy-load transportation. We optimized the wheel structure and frame stress distribution to keep the equipment running smoothly during turning and rail transitions.
Main equipment configurations:
- Power System: Battery-powered operation with flexible movement and no trailing cables; this battery-powered rail cart can move more freely in complex working environments.
- Drive System: Variable frequency drive system for smooth start, stop, and speed adjustment.
- Control Method: Wireless remote control + pendant control dual-operation mode.
- Brake System: Electromagnetic brake to improve operational safety.
- Safety Configuration: Audible and visual alarm system, emergency stop button.
- Frame Structure: Reinforced steel frame structure to improve load capacity and deformation resistance.
- Auxiliary Design: Reserved lifting holes for transportation and installation.
- Rail Adaptability: Supports stable operation on S-shaped, U-shaped, and curved tracks.
Specifications
| Item | Parameter |
| Load Capacity | 20 Ton |
| Table Size | 6000×2200×700 mm |
| Power Supply | Lead-acid Battery |
| Operation | Wireless Remote + Pendant |
| Brake System | Electromagnetic Brake |
| Running Speed | Customized |
| Rail Type | Straight / S / U / Curved Rail |
| Protection Devices | Emergency Stop + Alarm Light |
| Color | Customized |
| Optional Function | Hydraulic Lift / Tilting |
Project Results
After the equipment was put into operation, the customer reported a significant improvement in on-site transportation efficiency. According to project operating statistics, transfer efficiency increased by approximately 35%, internal workshop transportation time was reduced by around 30%, and forklift usage frequency dropped by more than 40%.
The stable operation capability on S-shaped, U-shaped, and curved tracks allowed transportation routes that previously required multiple transfers to be completed in a single trip. The project manager commented, “The equipment runs more steadily than we expected. Even under complex rail conditions, it maintains smooth operation, making the transportation process much easier and reducing pressure on workshop management.”
This Croatian steel plate transfer cart project successfully solved the customer’s challenges related to heavy-load transportation, complex rail adaptability, and transportation safety. The customer expressed a very high level of satisfaction with the overall project performance and stated plans to continue cooperation with REMARKABLE on future material handling projects.
Advantages
The configuration of this 20-ton steel plate battery rail transfer cart can meet efficient material handling requirements under complex working conditions.
- Heavy-Duty Structure： The reinforced steel frame design provides even force distribution and strong load-bearing capacity, suitable for transportation tasks of 20 tons and above.
- Complex Rail Adaptability： Runs stably through S-shaped, U-shaped, and curved tracks and adapts well to complex layouts.
- Flexible Battery Power Supply： Battery-powered operation without trailing cables, suitable for multi-workstation and cross-area transportation.
- Dual Control Modes： Supports wireless remote control and pendant control for convenient operation and improved dispatching efficiency.
- Multiple Safety Protection Features： Equipped with electromagnetic braking, alarm systems, and emergency stop devices to improve transportation safety.
- Smooth and Precise Operation： Variable-frequency drive control enables smooth starting, stopping, and speed adjustment for more stable operation.
- Functional Expansion Capability： Supports additional lifting and tilting functions to meet diverse working requirements.
The equipment combines heavy-load capacity, strong adaptability, and intelligent operation, making it a safe and efficient solution for industrial material transportation.
Application
The 20 ton steel plate battery rail transfer cart is suitable for workshop and plant rail transportation of heavy materials and is widely used in the following scenarios:
- Steel Processing Industry: Used for transporting steel plates, steel coils, and steel profiles to improve production logistics efficiency.
- Mold Manufacturing Workshops: Suitable for safe transportation of large molds, fixtures, and heavy components.
- Warehouse Logistics Systems: Used for material distribution between warehouses and production lines for fixed-point transportation.
- Equipment Manufacturing Industry: Suitable for transporting large mechanical parts, structural components, and finished products.
- Complex Rail Working Conditions: Suitable for S-shaped, U-shaped, and curved rail environments to meet transportation needs in special workshop layouts.
- Expandable Functional Applications: Lifting and tilting systems can be added to meet loading, unloading, and positioning requirements.
Why Choose RERMAKABLE
REMARKABLE focuses on the research, development, and manufacturing of rail transfer equipment and is committed to providing safe, efficient, and customized material handling solutions.
- Extensive project experience: Serving multiple industries with mature heavy-duty transportation cases.
- Customized design support: Load capacity, dimensions, power supply, and functions can be customized.
- Strict quality control: Selected materials and standardized manufacturing ensure stable equipment performance.
- Professional technical support: Provides solution design, installation guidance, and after-sales service.
- Comprehensive safety design: Multiple safety protection configurations improve transportation reliability.
With reliable products and professional service, REMARKABLE continues to provide efficient rail transfer solutions to customers worldwide.
Conclusion
The successful delivery of this Croatian 20 ton steel plate battery rail transfer cart project not only solved the customer’s heavy-duty transportation challenges under complex rail conditions but also further demonstrated REMARKABLE‘s technical capabilities in customized rail transfer equipment. From solution design and structural optimization to equipment delivery, we always focus on practical working conditions to provide safer, more efficient, and more flexible material handling solutions.
Whether you need transportation equipment for steel plates, steel coils, molds, or other heavy materials, REMARKABLE can provide customized solutions according to load capacity, rail type, and functional requirements. Contact us to get your exclusive rail transfer solution.
