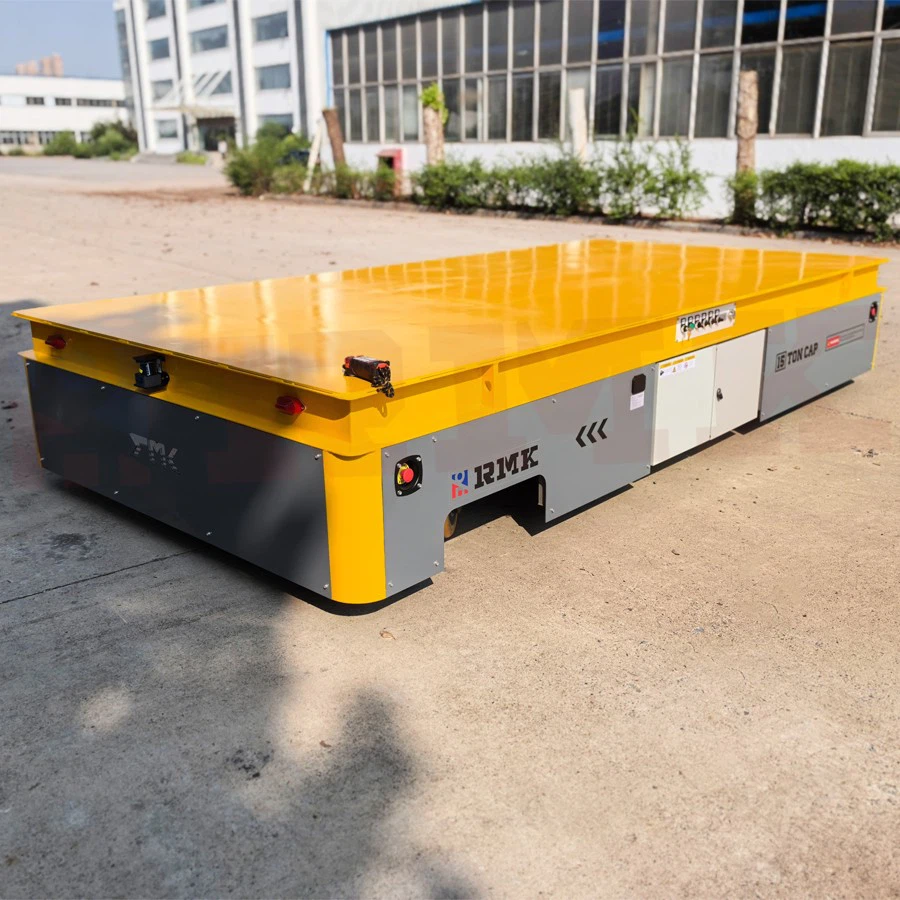

The motorized transfer cart is battery-powered and motor-driven, featuring environmental friendliness and low noise, making them suitable for use in enclosed environments such as indoor workshops.

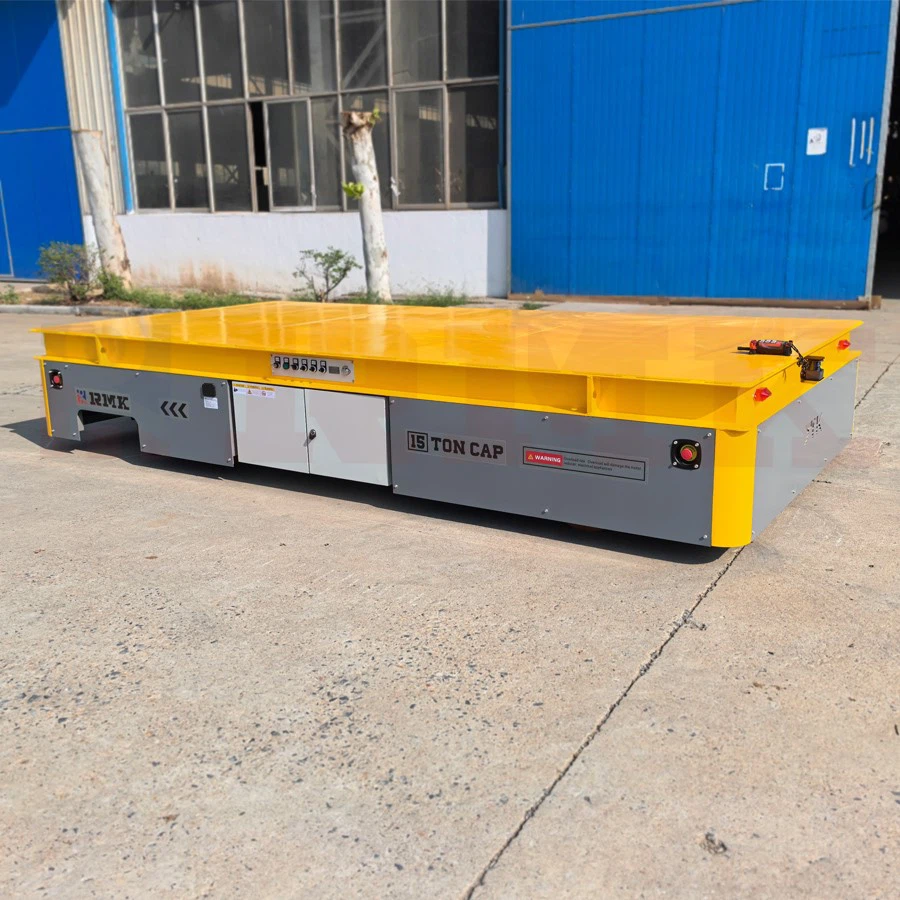

  • Load capacity: 15 tons
  • Body dimensions: 4000 × 2000 mm (length × width)
  • Drive type: Battery-powered + Electric motor drive
  • Steering system: Differential steering (flexible and precise control)
  • Wheel material: Polyurethane wheels (wear-resistant + shock-absorbing)
  • Environmental protection and low noise: Zero emissions, low noise, suitable for precision workshops/indoor enclosed environments
  • Safety protection: Laser obstacle avoidance + emergency stop button (automatic shutdown upon encountering obstacles)
  • Trackless flexibility: No tracks required, free path planning, space-saving
sEND TO EMAIL

Working Principle

The motorized electric transfer cart​ is powered by a lithium battery motor and uses a differential control system to independently adjust the speed of the left and right wheels, enabling flexible steering without tracks. It uses polyurethane wheels to reduce road vibration and ensure smooth transport of goods. At the same time, it uses laser radar to scan the environment in front of it in real time. If there are obstacles within 5 meters, it will immediately trigger emergency braking to keep people, goods, and equipment in a safe environment and ultimately complete the precise transport of heavy loads.

Parts

Drive System

The Motorized Transfer Cart is equipped with a motor, reducer, and drive wheels. When the motor receives power, it starts up and transmits power to the drive wheels through the reducer, driving the vehicle body to run smoothly along the track.

Control System

The control system can be divided into the following types according to the operation method:

  • Manual Operation: The vehicle body can be started, stopped, moved, shifted, and emergency stopped through a handle or remote control. The operation is simple and suitable for scenarios requiring manual intervention.
  • Automatic control: Equipped with a PLC control program, it can be integrated with upper-level computers, sensors, limit switches, and other devices to achieve automated operation, precise positioning, obstacle avoidance control, and other functions, suitable for intelligent manufacturing systems.

Safety System

To ensure operational safety, the track transfer vehicle is equipped with multiple safety devices, such as audio-visual alarms, emergency stop buttons, limit switches, collision buffers, and speed controllers, effectively safeguarding personnel and equipment safety.

Motorized Transfer Cart Specifications

Rated load (T) 21020305063150
Table SizeLength (l)20003600400045005500560010000
Width (W)1500200022002200250025003000
Height (H)4505005506006507001200
Wheelbase (mm)1200260028003200420043007000
Inside track gauge (mm)1200143514351435143514352000
Wheel diameter (mm)270300350400500600600
Operating speed (min)0-250-250-200-200-200-200-18
Motor power (kW)11.62.23.556.315
Battery capacity (Ah)180160180250330400600
Battery voltage (V)24484848484872
Maximum wheel load (KN)14.442.677.7110.4174221.4265.2
Reference weight (t)2.84.25.96.8810.826.8
Note: All models can be equipped with special customized features such as hydraulic lifting as an option.

Video

10 tons motorized rail transfer cart

10 tons motorized trackless transfer cart

Customized Motorized Transfer Cart

Please provide the following information, or simply describe your application scenario (e.g., workshop mold transportation or port container handling), and we will tailor the most cost-effective material handling solution for you, providing detailed quotes and technical specifications within 24 hours!

  • Load capacity and dimensions: Maximum load capacity (tons) and platform dimensions (length × width).
  • Track conditions: Track type (rail/I-beam track), track gauge (mm), and operating distance.
  • Power supply method: Battery/low-voltage track/cable reel/slide contact line (select applicable options).
  • Control requirements: Remote control/automatic/variable frequency speed control, whether PLC or intelligent interlocking is required.
  • Environmental requirements: Indoor/outdoor, explosion-proof, high-temperature resistance, or other special conditions.
  • Safety configuration: Basic protection (limit switches, emergency stop) or advanced collision prevention, load monitoring.

Features

Application

Core Application Scenarios for Motorized Transfer Carts

Heavy Manufacturing Workshop: Short-distance transportation of 15-ton steel coils and large metal components

Precision Machining Area: Dust-free delivery of precision instruments/parts between CNC machine tools

Automobile Assembly Line: Flexible transportation of heavy assemblies such as engines and transmissions on narrow production lines

High-bay Warehouse Center: High-frequency consolidation of palletized goods (20+ trips per day)

Special Operating Conditions: Heavy-duty material handling in petrochemical explosion-proof warehouses/50°C foundry workshops

Multilingual Factory: Cross-regional logistics coordination in Arabic/English mixed factory zones

Automation Upgrade Project: Traditional workshops transformed into the foundation for AGV intelligent logistics systems

Omnidirectional Transfer Trolley Application

Motorized Transfer Cart Manufacturer

Related Articles

Related Products

Customized Intelligent Material Handling Solutions

To ensure that a customized transfer cart fits your needs perfectly, please provide the following details:

  • Load Capacity: _____ tons (1~500 ton)
  • Table Size: _____ × _____ mm/m (e.g., 1500×3000)
  • Power Options:
  • ☐ Lead-acid ☐ Lithium-ion ☐ Other: _____
  • ☐ Cable: _____V/_____A
  • ☐ Standard 380V/50Hz/3-phase
  • Cargo Details:
  • Type: _____ (e.g., steel coils, machinery)
  • Special Needs: _____ (e.g., anti-slip, corrosion-proof)
  • Optional Features:
  • ☐ Emergency stop ☐ Anti-collision sensors
  • ☐ Rail guides ☐ Lifting mechanism ☐ Remote control
