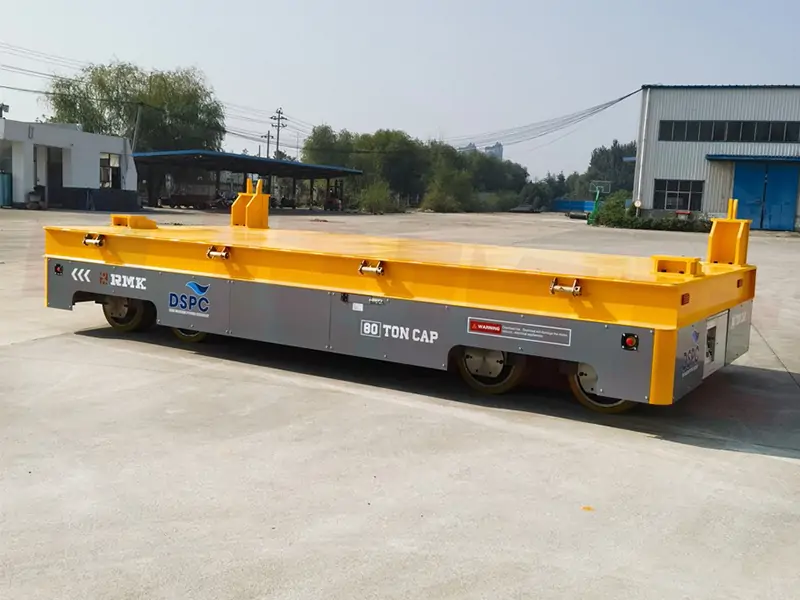

A Die Transfer Cart is a heavy duty transfer equipment designed for industrial heavy duty die handling, which is mainly used in press shop, automobile manufacturing, metal forming and other industries with high load working conditions. It adopts high-strength steel frame, equipped with large load wheels (e.g. cast steel wheels or polyurethane-coated wheels) and precision bearing system, which can load 1~500 tons of molds or large-sized objects, and realize safe and high efficient transferring and transferring in the workshop.
- Load capacity: 2 tons~500 tons
- Table size: customizable
- Operating speed: 0~25m/min
- Control mode: push button/remote control
Die Transfer Cart Parts
The Heavy Duty Die Transfer Cart consists of a high-strength frame, a large load wheel system, a guiding and positioning system, a drive module, safety guards and an optional hydraulic/electrical control system. The following are the functional characteristics of its main components:
- Frame: the main load-bearing structure, made of high-strength steel (e.g. Q345B) welded together, load the weight of the mold and disperse the load.
- Wheel Assembly: It consists of heavy-duty wheels + bearings + driving wheels to realize the smooth movement and load transfer of the transfer vehicle.
- Guidance System: It is composed of V-type guide rail + guide wheel, which can accurately center the molds and presses or work stations to prevent deflection.
- Drive System: electric drive or manual drive, optional wireless remote control.
- Safety Components: Dual braking system + collision avoidance device + overload protection.
- Hydraulic/Lift System: Optional hydraulic device, to assist mold lifting or leveling.
Videos Show
25 Tons Working Principle & Steering mode
Die Transfer Cart Cases Show

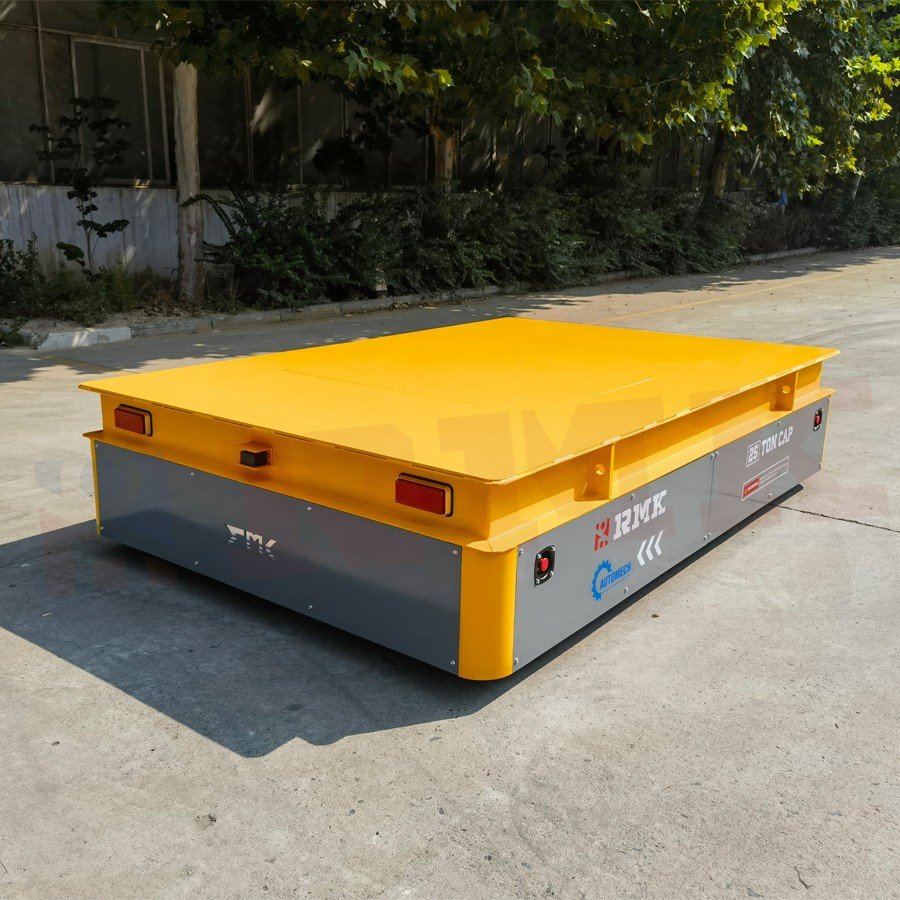

20 tons /25 tons mold transfer cart Run tests before shipping
Different Types Of Die Transfer Carts For Sale
We offer and sell different types of Die Transfer Carts, with load capacities ranging from 1-150 tons, and can be specially customized according to your requirements, including trackless or rail transfer cart, load capacity, table size, operating speed, control mode, and additional functions. Welcome to contact our professional team to obtain efficient and reliable intelligent material handling solutions.
4 Tons Omni-directional Mold Transfer Cart
15 Tons Hydraulic Lift Die Transfer Carts
35 Tons Injection Mould Transfer Trolley
40 Tons Die Transfer Carts On Wheels
Specifications
| Item | Specifications |
|---|---|
| Model | RWP-35T |
| Rated Loading capacity(T) | 35 |
| Safety load factor | 1.2 |
| Table size(mm) | 5600*3200 (L*W) |
| Cart height(mm) | 900 |
| Ground type | Cement floor, Epoxy floor,Asphalt floor |
| Climbing slope | No more than 2 degrees |
| Operation method | Wireless remote control & Hand operate pendant |
| Traveling speed(m/min) | 0-20 (Stepless speed regulation) |
| Wheel material | Press fit solid rubber wheels |
| Wheel quantity | 8 |
| Brake mode | Electromagnetic brake |
| Power supply | Maintenance free lead-acid battery |
| Protective device | Audible and visual alarm lamp and emergency stop button,Laser obstacle avoidance |
| Color | Customized |
| Steering Gear | Hydraulic steering |
| Electronic Control Mode of turning | Electric button control |
| Adjustment of floor flatness | Mechanical automatic regulation |
| Battery working time | Can continually work about 3 hours after full charge |
| Battery charger function | Automatic charging |
| Move Way | Forward,backward and rotate 360 degrees,turning while driving with no stop |
| Flat car’s protection | Overvoltage, undervoltage, overcurrent protection etc |
Features
Smooth movement
Mold transfer carts are usually designed with large wheels or casters, which can easily transfer super-heavy molds and quickly complete mold changeover.
Strong load capacity
Strong load capacity: static load up to 500 tons (according to model), dynamic load factor ≥ 1.25. It can easily and safely transport super-heavy loads.
Accurate positioning
Optional hydraulic lifting module or V-guide rail guiding system guarantees millimeters precise centering of the molds and presses.
Multiple control modes
Optional wired remote control, wireless remote control or automatic control system. Can be customized according to your needs.
Multiple safety protection
Standard equipped with dual braking system, bumper, anti-offset limit device and overload alarm and other safety functions, some models integrated laser obstacle avoidance sensor.
Low-maintenance design
Sandblasted anti-corrosion treatment on the surface, IP54 protection level for key components, easy maintenance and long service life of the whole machine.
Die Transfer Carts Application
- Press-to-press transfer of automotive overlay molds
- Warehouse-to-line transfer of large injection molds
- Positioning and mounting of aerospace composite molding dies
The machine can be customized in terms of dimensions, drive type and additional features (e.g. rotating platform, automatic clamping) through its modular design, so please feel free to contact our professional team.
Related Articles
Custom Die Transfer Cart
Fill out the form for a customized die transfer cart solution and quote!
Remarkable as a professional die transfer cart supplier in China, we provide a full range of electric transfer cart customized services, please provide the following key parameters: rated load, platform size, running distance and frequency, running speed and control mode. Our professional engineering team will provide you with model recommendation, 3D layout plan, configuration list and detailed quotation within 24 hours.
