Project Background:
Why the Customer Needed a Trackless Transfer Cart
A large furniture manufacturer in Bulgaria operates multiple production workshops and warehouses. Although overhead cranes are used for material lifting inside workshops, the company lacked an efficient solution for medium and long-distance cross-workshop transportation.
To improve internal logistics efficiency and reduce manual handling, the customer decided to introduce a 5 ton Trackless Transfer Cart powered by battery, aiming to achieve:
- Flexible material transfer between buildings
- Zero rail installation
- Environmentally friendly operation
- Improved production workflow
This battery powered transfer cart is ideal for internal factory logistics, cross-workshop transportation, and smart factory material handling.
Customer Requirements Analysis
CE Compliance for the European Market
As the equipment would be used in Bulgaria (EU region), the customer required:
- CE certification
- Proof of previous European export cases
- Compliance with EU safety standards
Providing a CE certified industrial cart ensures smooth customs clearance and meets European factory solution standards.
Short Slope Passability Without Extra Motor Upgrade
At the entrance of the factory, there is a short slope.
The customer requested:
- Smooth climbing performance
- No increase in motor power
- No additional cost burden
Our technical team confirmed that the Trackless Transfer Cart can use the motor’s instantaneous overload capacity to pass the slope, demonstrating slope climbing capability without upgrading motor power.
Flexible Loading Platform Design
Since transported materials vary in size:
- Raw wood panels
- Semi-finished furniture
- Finished products
The customer required a universal loading platform adaptable to multiple load types.
The industrial transfer trolley platform supports:
- Forward movement
- Backward movement
- Turning while moving
- 360° rotation
This improves handling flexibility and efficiency in workshops and warehouses.
Long Battery Endurance for High-Frequency Use
The factory operates at high production intensity, requiring:
- Long continuous working hours
- Stable full-load operation
- Reduced charging interruptions
Our battery powered transfer cart provides extended battery capacity to support 3 hours of full-load operation, suitable for high-frequency daily use.
Customized Trackless Transfer Cart Solution
EU Certification & Trust Building
- CE certification provided
- Successful European export references shared
- Compliance documents prepared
This ensures confidence and reduces purchase risk for European manufacturers.
Motor & Hill-Climbing Optimization
- Motor overload capacity calculated for slope climbing
- No additional power needed
- Smooth operation achieved
- Cost-effective solution maintained
The rail free transfer cart ensures efficient operation across workshops and warehouses.
Universal Platform Design
Platform size: 3000 × 2000 mm
- Suitable for varying material dimensions
- Increased utilization rate
- Reduced need for customized fixtures
The factory transport cart supports multiple operation modes, improving flexibility for industrial automation handling.
High-Capacity Battery Configuration
- Power supply: Lead-acid battery
- Working time: 3 hours under full load
The battery design ensures stable operation for heavy load movement solutions in smart factory environments.

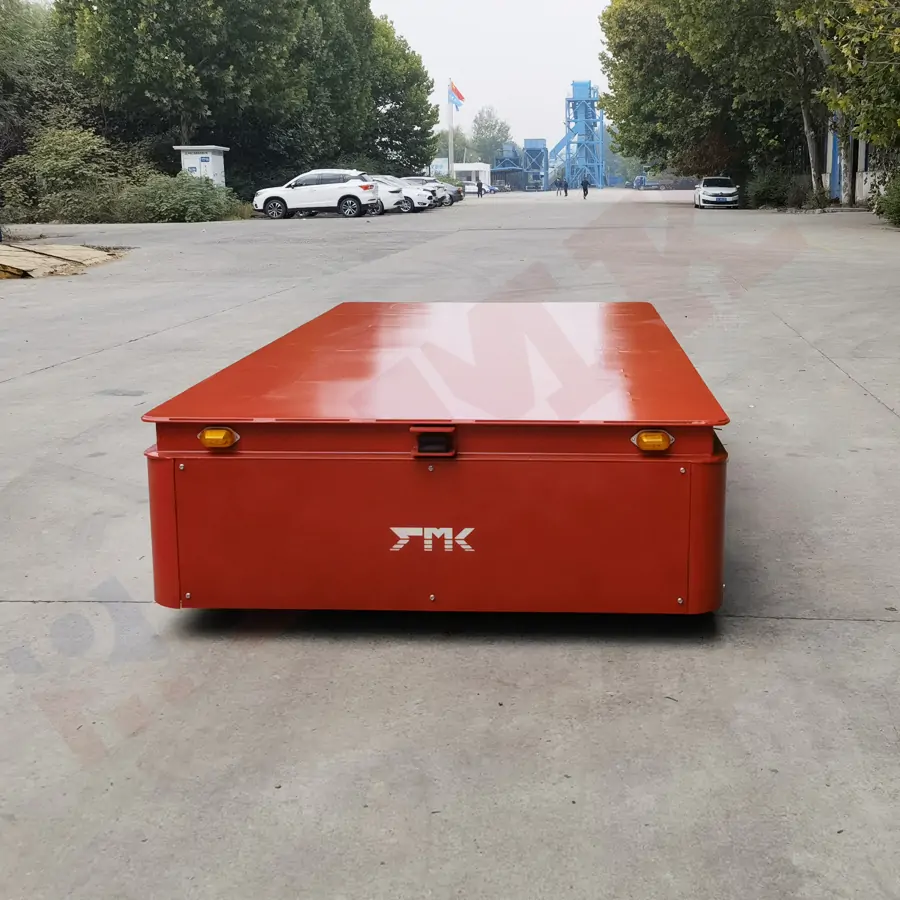

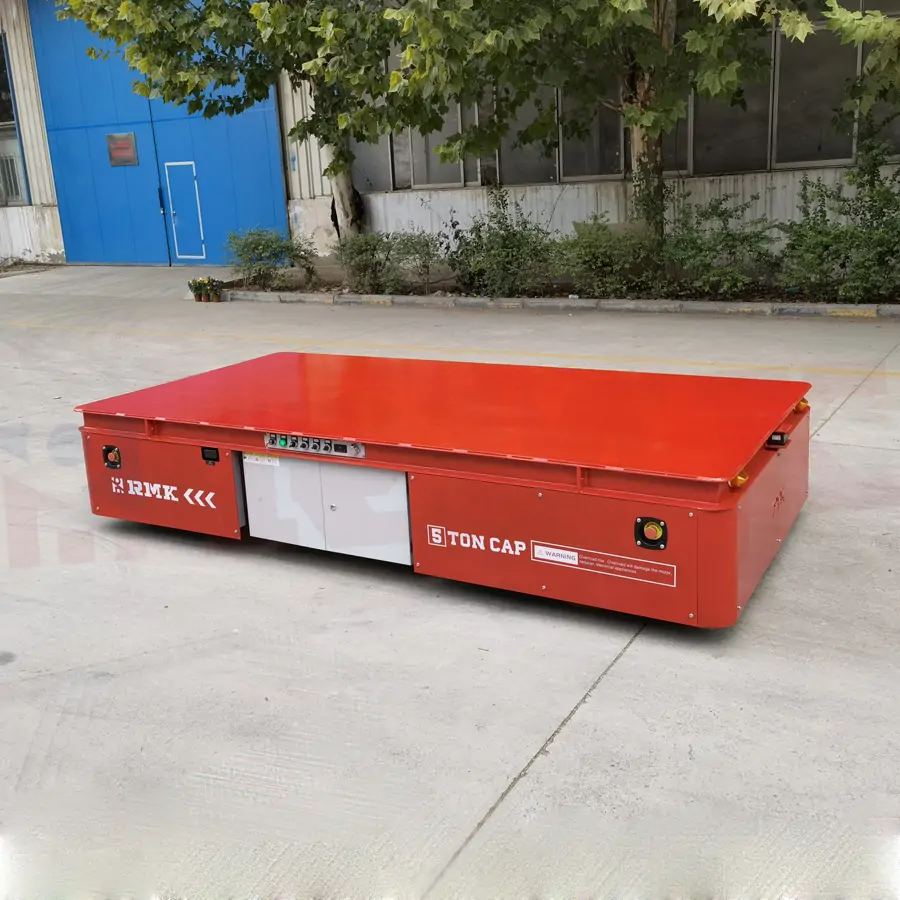

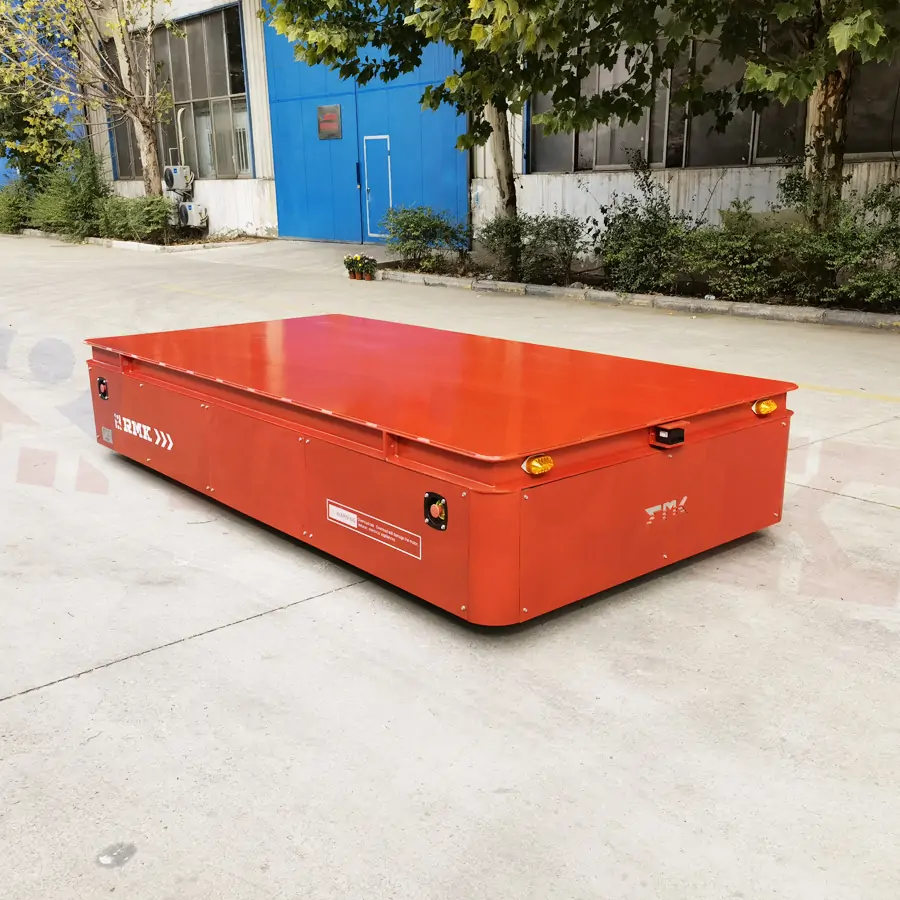

Technical Parameters of the 5 Ton Trackless Transfer Cart
- Load Capacity: 5 Ton
- Platform Size: 3000×2000×600 mm
- Power Supply: Lead-acid battery
- Running Modes: Forward / Backward / Turning / 360° rotation
- Wheel Material: Polyurethane-covered rubber wheels
- Safety System:
- Front and rear laser obstacle avoidance
- Automatic stop when detecting obstacles
The safety system ensures compliance with European industrial safety standards and provides reliable obstacle detection functionality.
Results & Customer Feedback
After delivery:
- Equipment arrived with sea-transport standard packaging
- Smooth installation and commissioning
- Stable performance in daily operation
The customer recognized the quality and service support and referred 3 new clients.
This project demonstrates that a properly engineered Trackless Transfer Cart significantly improves cross-workshop transportation and warehouse logistics efficiency for European furniture factories.
Why Choose a Battery Powered Trackless Transfer Cart for Factory Logistics?
Compared with traditional rail systems, a battery-powered transfer cart provides greater flexibility for internal factory logistics. It eliminates the need for rail installation, making it an ideal rail free transfer cart solution for factories with changing production layouts.
With strong slope climbing capability, 360-degree maneuverability, and polyurethane wheel traction, this industrial transfer trolley ensures smooth operation across workshops, warehouses, and loading areas.
For European manufacturers, CE certified industrial carts meet EU compliance standards. This project in Bulgaria demonstrates how a customized material handling solution can improve efficiency while maintaining a cost-effective transport system design.
As smart factory logistics continues to develop, Trackless Transfer Carts are becoming core components of industrial automation handling systems.
