Project Overview

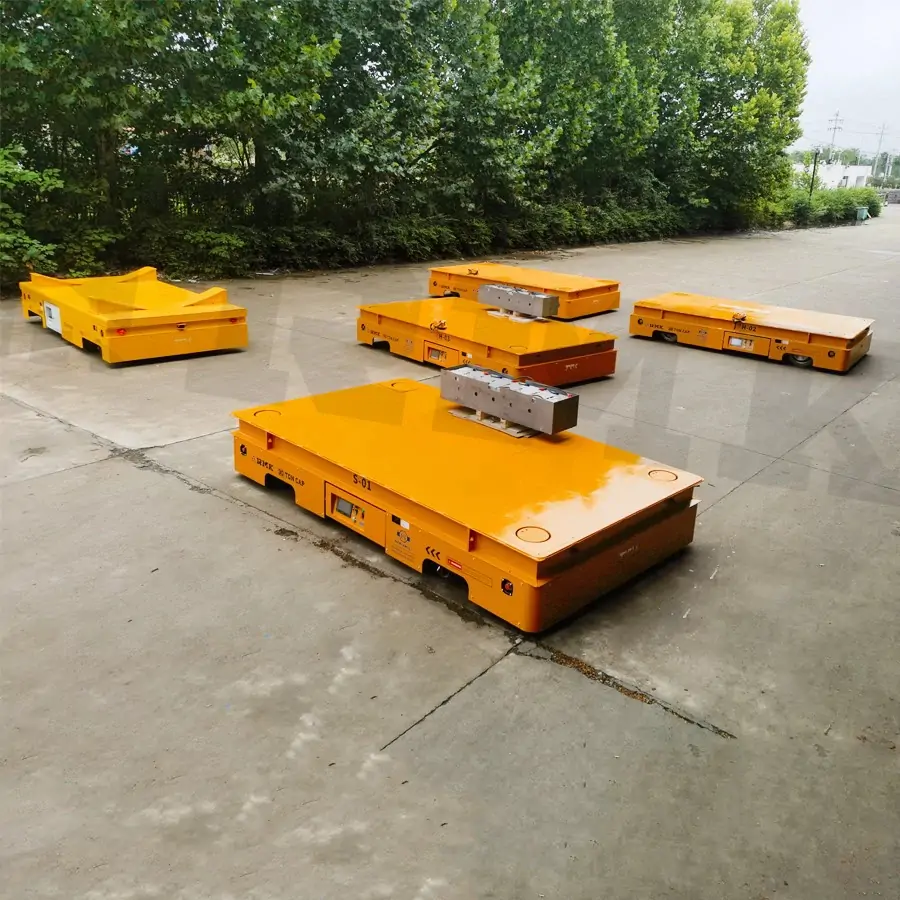

Recently, Remarkable successfully delivered four customized 30-ton hydraulic lift transfer carts to a Turkish manufacturer of chemical purification plants.
Hicri Ercili company is a company with a long history and rich experience in the production of chemical substances in purification plants and owns many shipyards. An efficient and safe handling equipment and transportation solution was needed for the production and transfer of chemical substances. The machines they use in production stack chemicals in 10 rows with a total weight of 30 tons. The customer was looking for a solution to transport these chemicals in liquid form that was compatible with the shipping pallets used. Since the loads were in liquid form, they needed to be transported without shaking or spilling.
Project Challenge
High Loads And Sensitive Hazardous Transport
The main challenge of the project was the safe transportation of high volume chemical substances without shaking. The height of the transfer cart must not be too high in order to transport it safely and minimize shaking.
Solution

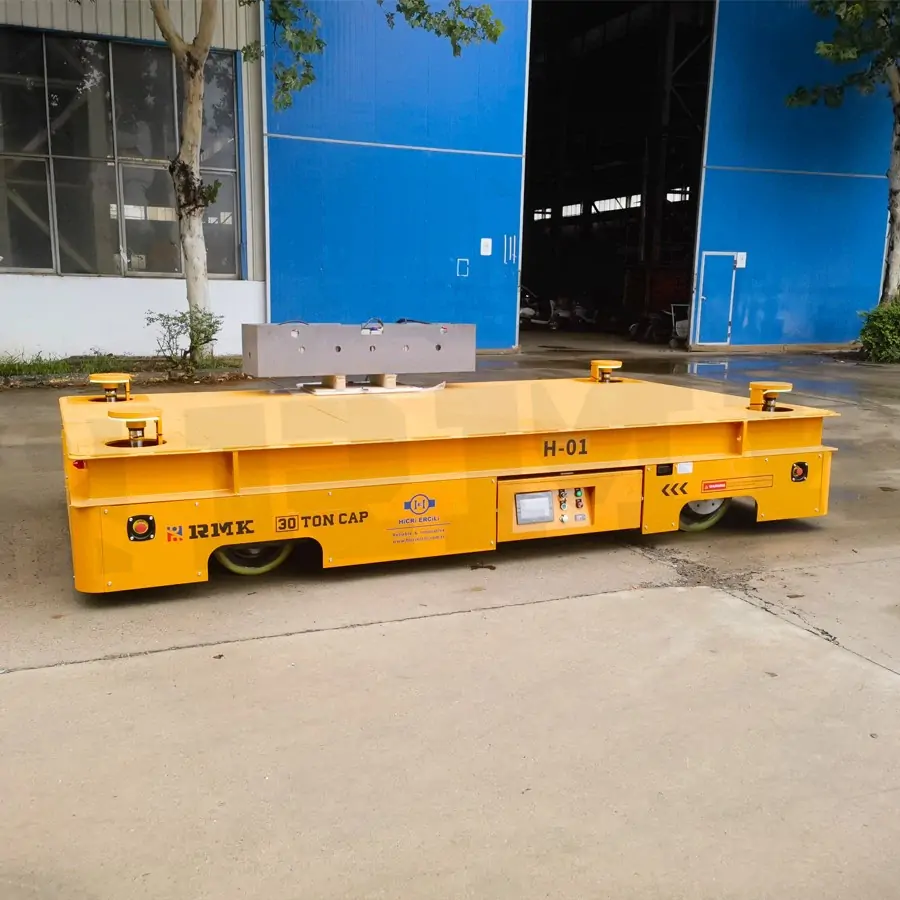

Battery-powered, four-wheeled, steerable, omni-directional mobile transfer cart.
After understanding its needs, Ruimaike customized a 30-ton omni-directional mobile transfer cart, which adopts differential rudder wheels, can move freely and flexibly in all directions, and most importantly, it is very stable and safe when transporting and moving work, without any shaking. At the same time, we take the hydraulic lifting device, can be compatible with all the customer’s pallets and goods, and safe lifting and transportation to the designated location.
In order to further ensure the safety of use, we have adopted multiple protection measures, electromagnetic brake system, slow start and stop system, sound and light alarm system, electric video alarm system, automatic obstacle avoidance sensors, anti-collision touch edge, emergency stop button and so on.
Technical Parameters
Model: RWP-30T
Rated Loading capacity: 30 ton
Table size(mm): 80002200 (LW)
Cart height(mm): 1000
Ground clearance(mm): 200
Ground type: Cement floor, Epoxy floor,Asphalt floor
Climbing slope: No more than 2 degrees
Operation method: Wireless remote control & Hand operate pendant
Traveling speed(m/min): 0-20 (Stepless speed regulation)
Result
Our solutions and technical design have been recognized by our customers, who decisively signed a contract for 4 sets of transfer trucks with us after visiting our factory and understanding our design, production process and product quality.
Rimeco continues to demonstrate its ability to provide special solutions tailored to industrial needs through a variety of cases. We will continue to provide innovative solutions to meet our customers’ needs through our special design and engineering services.
