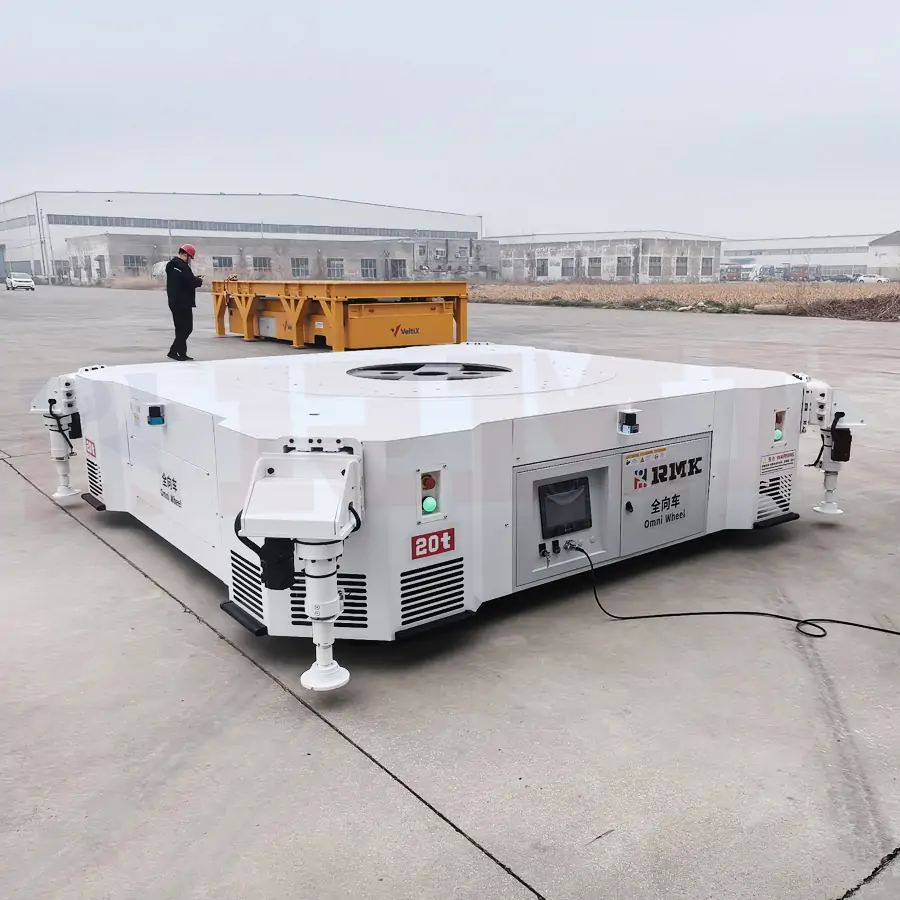

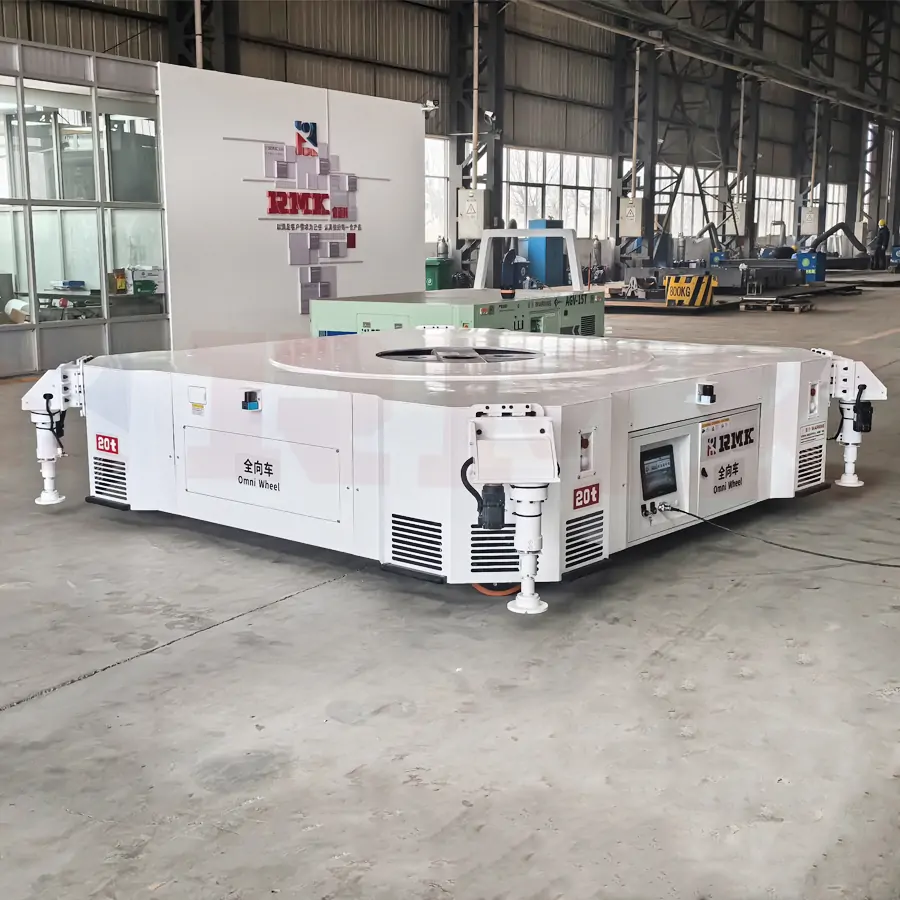

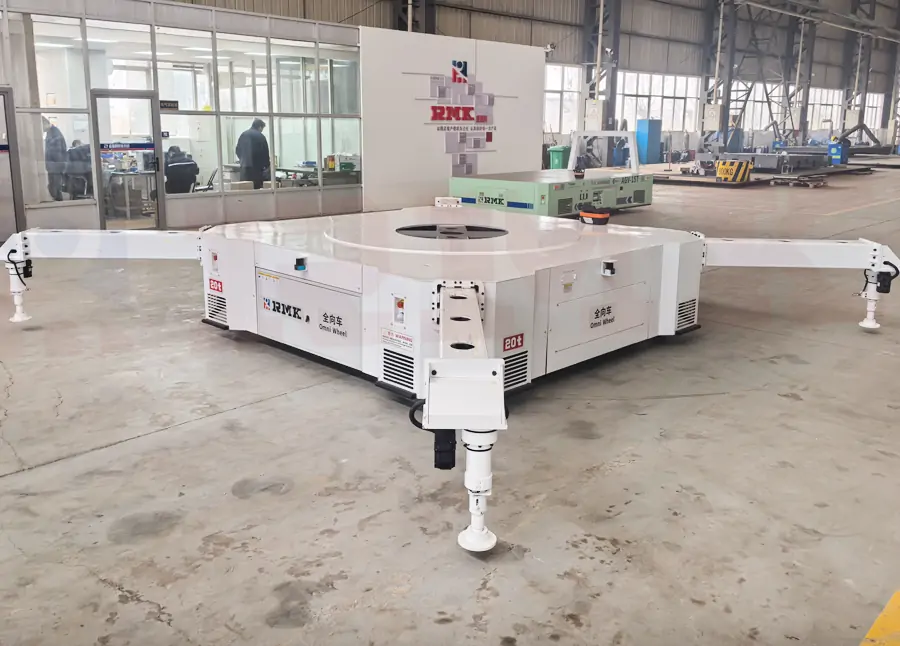

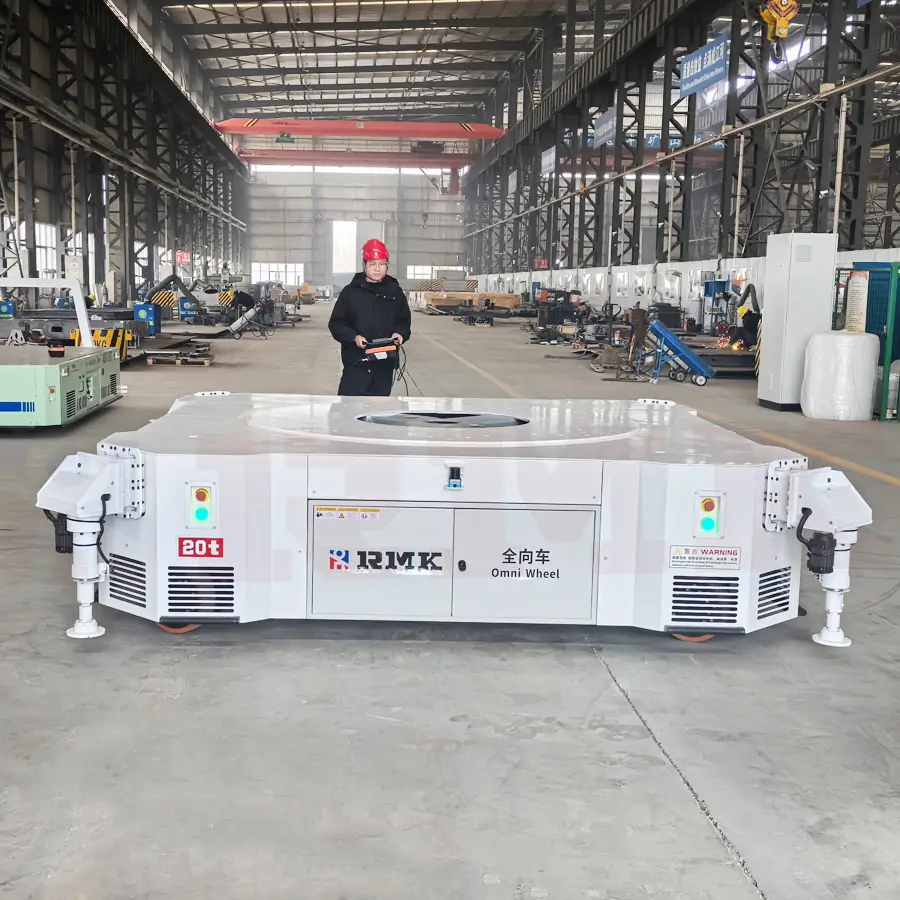

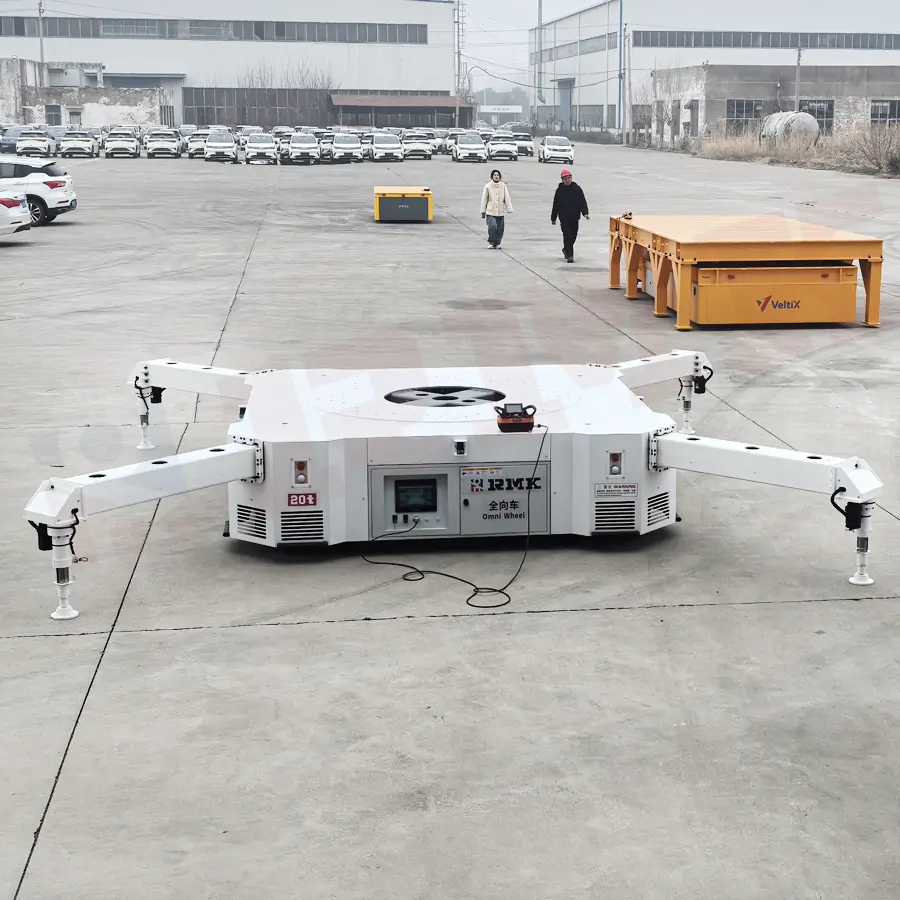

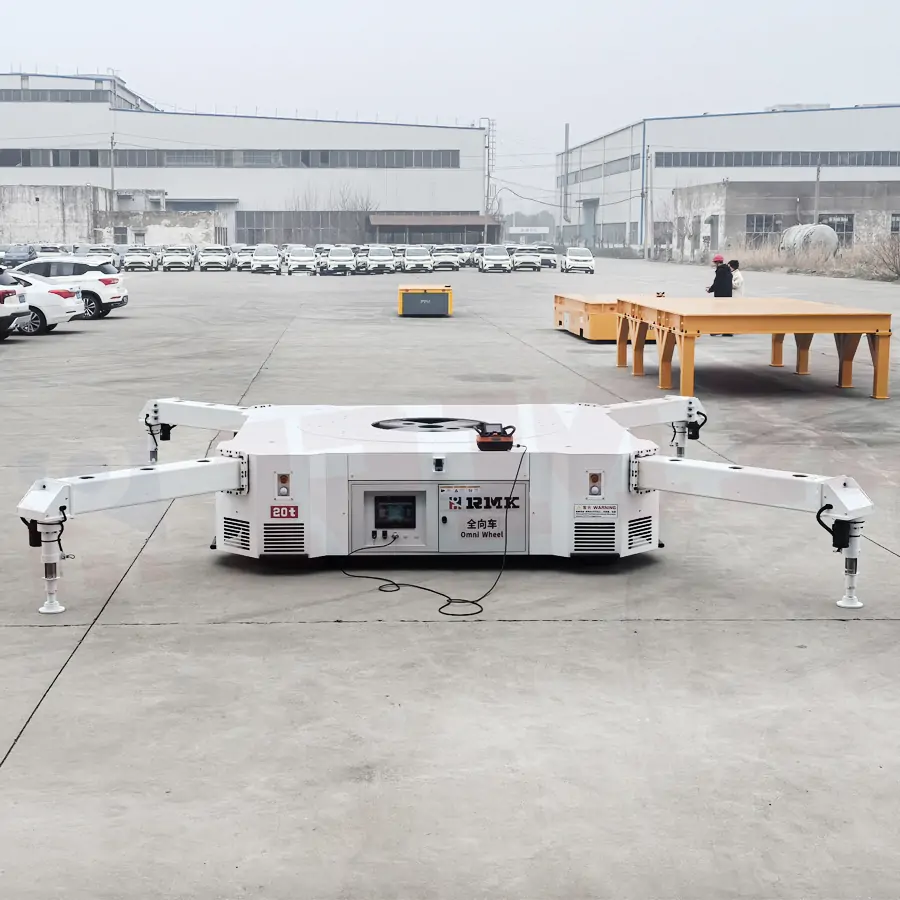

This 20-ton Multidirectional Transfer Car is trackless, a highly efficient and flexible material handling solution specifically built for the heavy industry sector. This equipment breaks through the limitations of traditional rail transfer carts and forklifts by utilizing an all-directional steering system, supporting straight travel, lateral movement, diagonal movement, and in-situ 360° rotation. Within extremely restricted and narrow spaces, this transfer car can achieve precise positioning and unobstructed transport of loads weighing up to 20 tons. Eliminating customers’ concerns about transporting oversized and overweight materials in narrow factory spaces.
Equipped with hydraulic leveling and lifting systems, it has excellent load stability and safety even on uneven ground and in complex operating environments.
- 耐荷重： 20,000 kg (20 Tons)
- Steering Mode: 360° Omnidirectional (Lateral, Diagonal, and In-situ Rotation)
- 電源： High-capacity, maintenance-free battery system
- Safety Features: 4-point hydraulic outriggers, dual-point laser scanners, and an emergency stop system
Workflow of the 20-Ton Multidirectional Transfer Car
- Instruction Reception: The operator issues movement commands via wireless remote control.
- Calculation & Allocation: The PLC decomposes the trajectory into angle and speed parameters for each wheel set.
- Collaborative Execution: Hydraulic outriggers retract, and wheel sets synchronously pivot to the designated angle and rotate collaboratively.
- Precision Docking: Upon arriving at the workstation, the position is fine-tuned via the lateral movement function. The outriggers extend and lock to complete a stable unloading.
機能モジュール
The efficient operation of this 20-ton Multidirectional Transfer Car originates from its mechanical, hydraulic, and intelligent control systems. Its functions are divided into four modules:

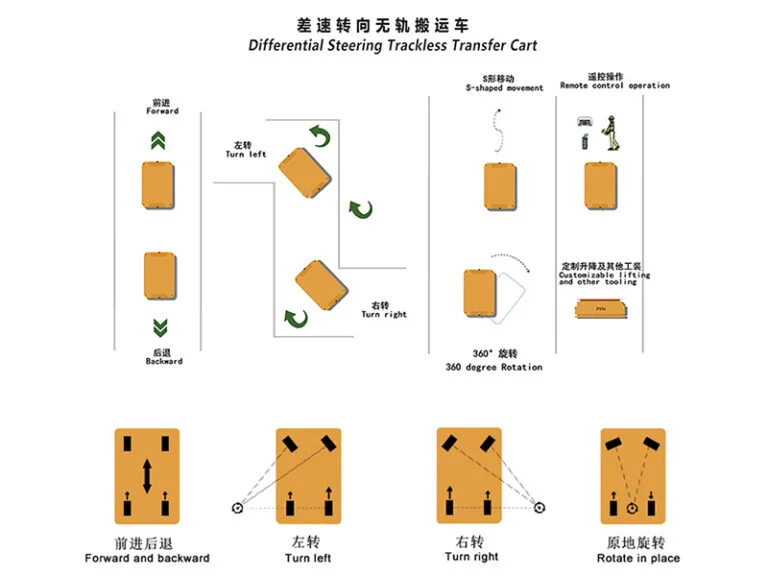

- Omnidirectional Drive Logic: Abandoning traditional single-axle steering, it adopts multi-steer-wheel independent control technology. Each drive wheel set is equipped with an independent power motor and steering motor. The central control system calculates the precise angle and speed required for each wheel in real-time. The vehicle can travel straight, move laterally, drive at a 45° diagonal, and rotate 360° in place without a turning radius.

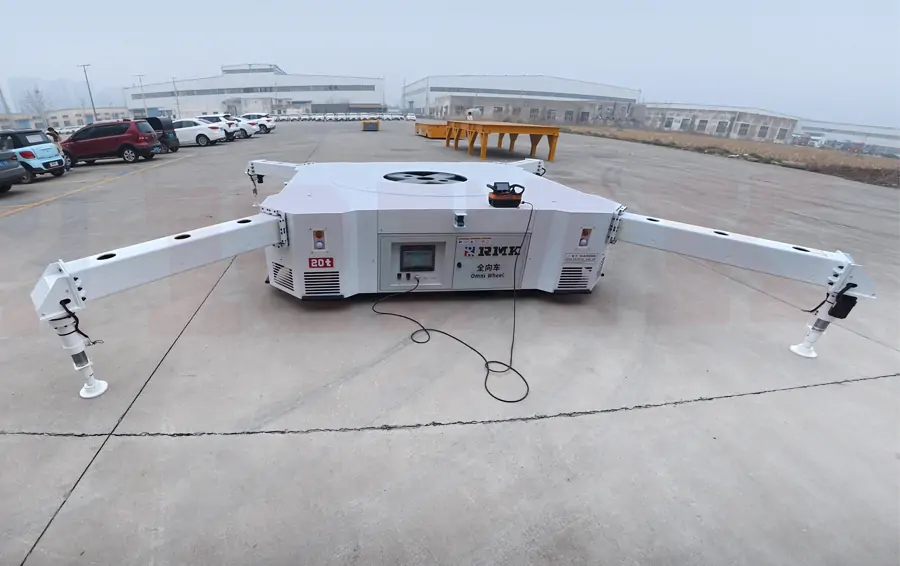

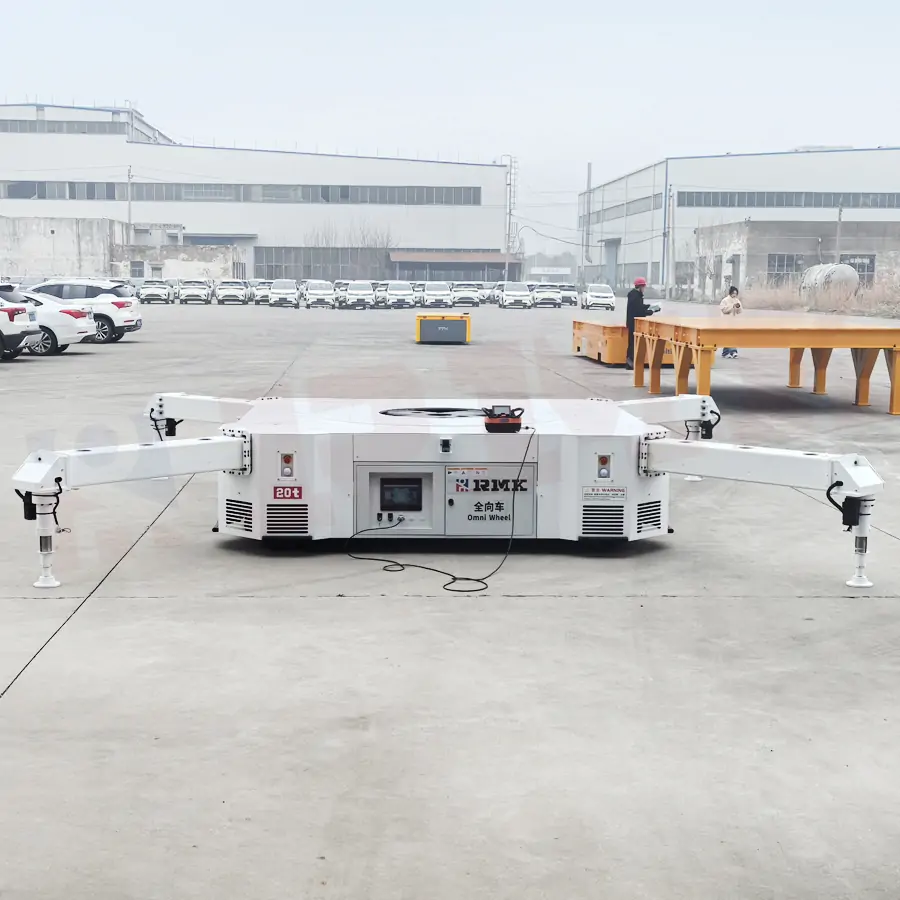

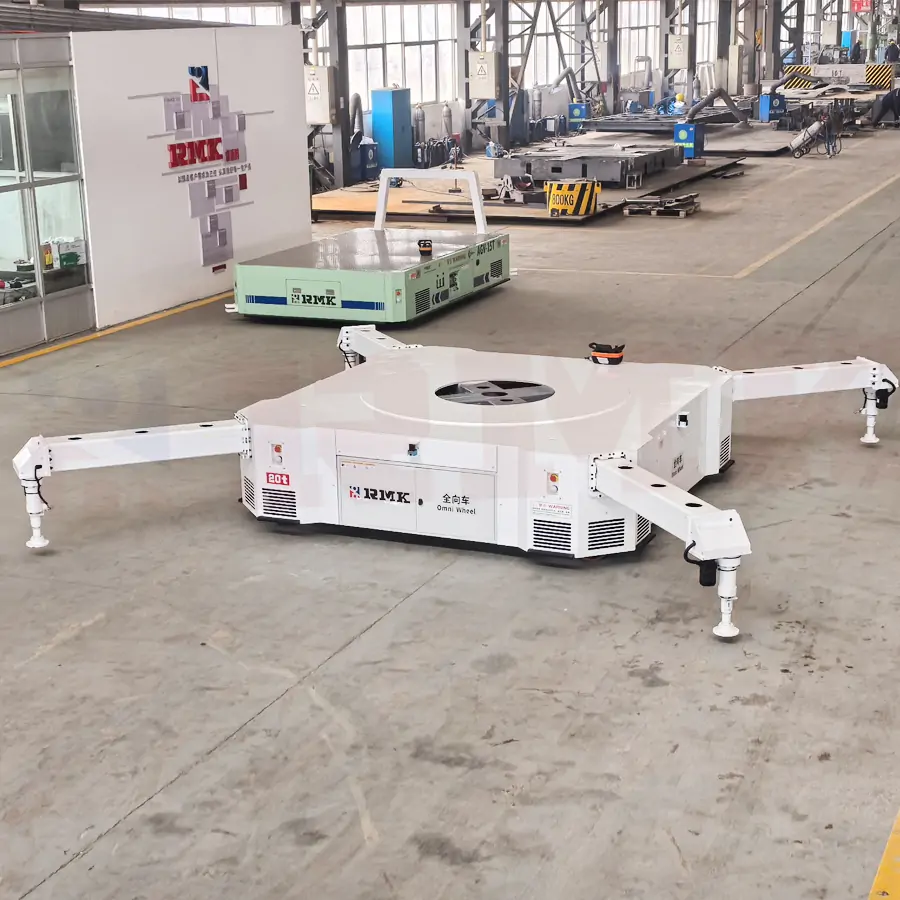

- Hydraulic Stabilization: To meet the 20-ton load requirement, the Multidirectional Transfer Car is equipped with specialized hydraulic outriggers. These outriggers extend and support vertically to expand the force-bearing area. The hydraulic system automatically adjusts outrigger pressure via sensors to prevent cargo from overturning due to center-of-gravity shifts or ground fluctuations.
- Positioning & Sensing: High-resolution encoders installed on the wheel sets feed real-time speed and position data back to the PLC controller. LiDAR sensors sense surrounding obstacles in real-time, executing deceleration or emergency braking based on preset algorithms to ensure the safety of workshop personnel and cargo.
- Power & Energy Management: The power source is provided by maintenance-free lead-acid batteries, with an inverter driving high-torque AC servo motors. The system adjusts power output based on the load weight. It provides peak torque during climbing or instantaneous starts and enters energy-saving mode during steady cruising.
Trajectory
Parts
High-Strength Steel Frame
Structural support, carrying a 20-ton load.

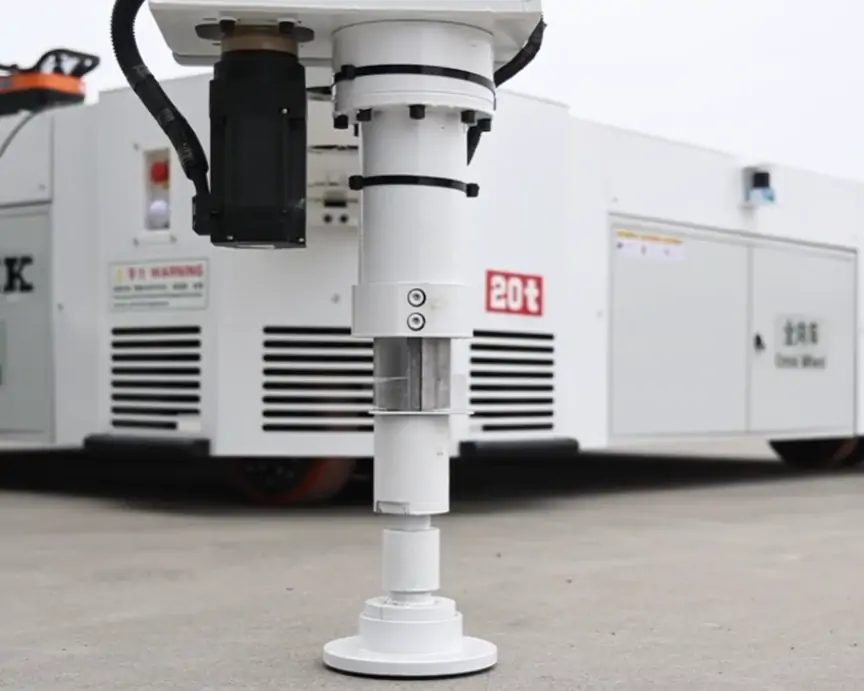

Hydraulic Outriggers
Enhance operational stability and prevent side-tipping.
Battery Pack
Maintenance-free lead-acid batteries.
PLC Controller
Algorithmic calculation and multi-wheel synchronous coordination.

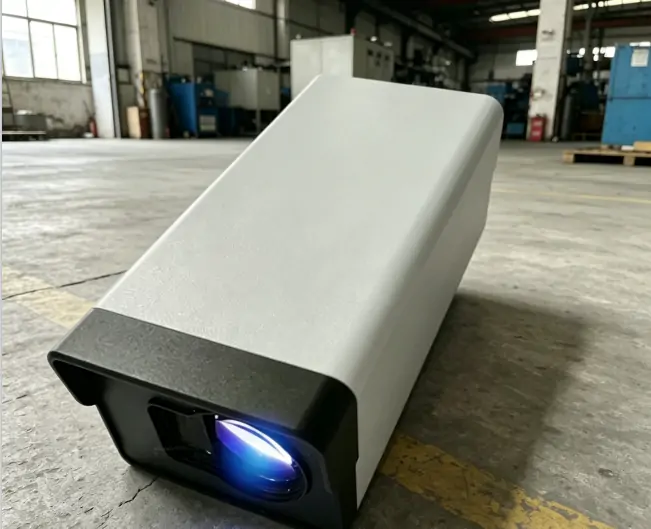

LiDAR
360° environmental perception and active obstacle avoidance.
保護装置
An intelligent anti-collision system with buzzing and flashing lights during operation to ensure safety.
仕様 Of 20 Ton Multidirectional Transfer Car
| カテゴリー | Technical Specifications | Notes |
| 負荷容量 | 20,000 kg (20 Tons) | Rated safety load |
| Dimensions | 6500 × 2800 × 750 mm | Height and platform size support customization |
| Movement | 360° Omnidirectional | Straight, lateral, diagonal, in-situ rotation |
| 移動速度 | 0 – 30 m/min | Variable frequency speed control, supports micro-speed docking |
| Steering Precision | ±0.5° | Multi-axis synchronous control technology |
| グレードアビリティ | ≤ 3% (Full Load) | Suitable for flat workshop floors and small-angle slopes |
| Power Source | Maintenance-free lead-acid or Li-ion battery | Eco-friendly energy, high cycle life |
| Endurance | 8 – 10 hours | Continuous full-load operation time |
| 制御モード | Wireless Remote + Manual Emergency Panel | Joystick control, intuitive and precise |
| Stabilization | Hydraulic Outriggers | Four-point independent support for stability |
| Braking | Electromagnetic Auto-Braking | Power-off self-locking, ensures safe ramp parking |
| Safety Devices | LiDAR + Mechanical Bumper + Sound/Light Alarm | 360° sensing scan, range ≤3m |
| 地上高 | 50 mm | Protects chassis, enhances passability |
| 環境 | -10°C ~ 50°C | Variable frequency speed control supports micro-speed docking |
注釈
- Other table sizes and load capacities can be customized according to user requirements.
- For hydraulic steering, a dual hydraulic steering system can be selected to reduce the turning radius based on site space constraints.
- Battery type and operating time (battery endurance) can be customized to meet customer needs.
- The product is subject to continuous improvement and upgrades; specifications in the table may change without prior notice.
ビデオショー
Custom Multidirectional Transfer Car
REMARKEABLE can customize transport vehicles for a wide range of heavy-duty industrial applications. Our customized solutions for heavy-duty industrial applications include:6-ton heavy-duty omnidirectional AGV, 50 tons pallet hydraulic lifting transfer car, 自動無軌道搬送台車, heavy load AGV, Many heavy-duty steerable transfer carts.
Rail transfer cart vs Trackless cart
Explosion-proof transfer cart
自動無軌道搬送台車
AGV搬送台車

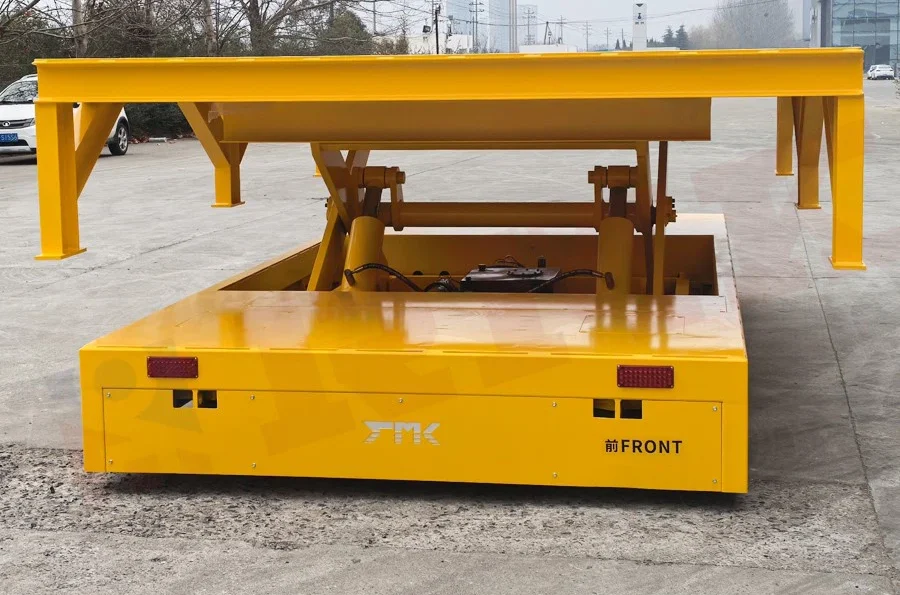

油圧昇降式搬送台車
